RIVAGE PM Series

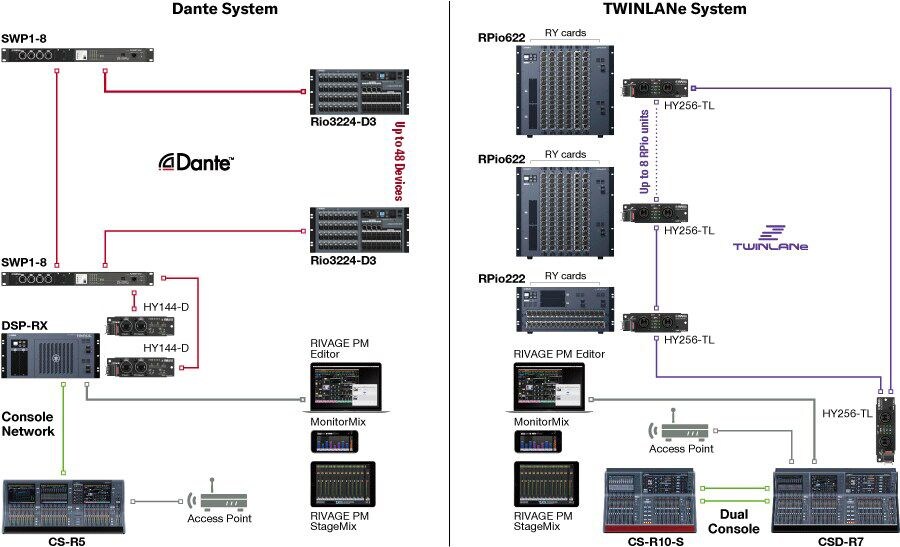

System Example 1
Yamaha offers two types of high-performance I/O Rack units for RIVAGE PM system input and output, each providing compatibility with a different audio network. The DSP-RX/DSP-RX-EX DSP Engine or CSD-R7 control surface can be fitted with a TWINLANe or Dante-capable HY card for use with RPio622/ RPio222 or Rio3224-D2/Rio1608-D2 I/O racks, respectively. Up to eight RPio622/RPio222 units can be connected to the TWINLANe card, or up to 24 Dante devices, including Rio3224-D2/Rio1608-D2 units, can be connected via a Dante network. The CS-R10-S Control Surface originally designed for use with the RIVAGE PM10 can also be connected to a RIVAGE PM7 system to serve as a sidecar for fader expansion and/or multi-operator control.

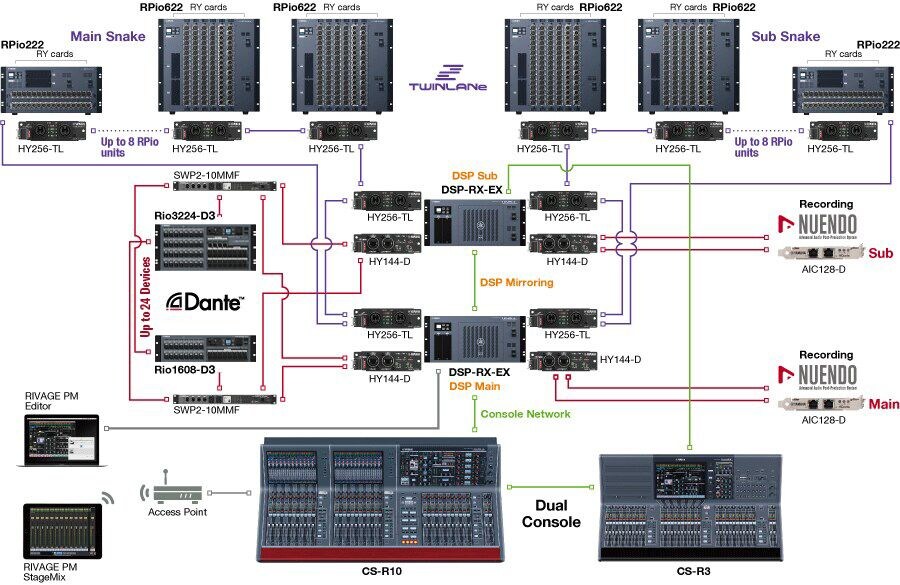

System Example 2
In a RIVAGE PM system, each DSP Engine can be fitted with a TWINLANe or Dante-capable HY card for use with RPio622/RPio222 or Rio3224-D2/ Rio1608-D2 I/O racks, respectively. Up to eight RPio622/RPio222 units can be connected to the TWINLANe card, or up to 24 Dante devices, including Rio3224-D2/Rio1608-D2 units, can be connected via a Dante network. The CS-R3 Control Surface originally designed for use with the RIVAGE PM3 can also be connected to other RIVAGE PM system to serve as a sidecar for fader expansion and/or multi-operator control.
