DXR mk3 Series Powered Loudspeakers New
Sound Changes Everything
One concert. One event. One bass drop. Often, the trajectory of your band, your brand, your business, or your career can be distilled down to a single, pivotal moment that changes everything. When that moment arrives you need to know that your audience is experiencing the full range of your expression and the sheer passion of your performance. The DXR mk3 Series continues the legacy of power and premium sound established by one of Yamaha’s most celebrated loudspeaker lineups, delivering higher output, outstanding flexibility, and the level of reliability that professionals the world over depend on for their most important performances. From the painstaking selection of premium component materials, to the development of intelligent, high-performance DSP features, every aspect of the DXR mk3’s design empowers users with the capability and confidence they need for those crucial moments when your sound makes all the difference in the world.
With its versatile features and options, it can handle all your entertainment audio needs.

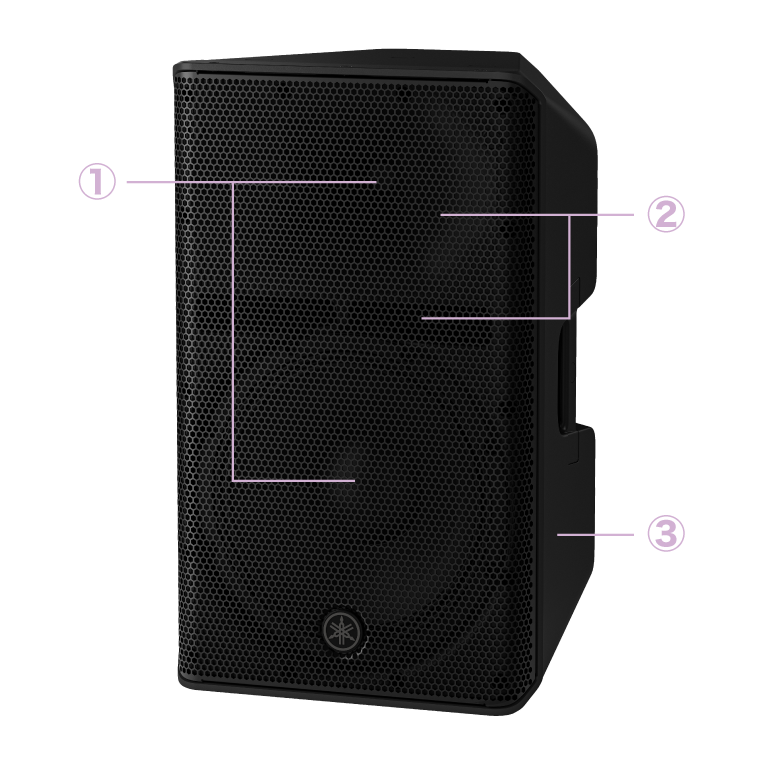

Significant improvement in acoustic performance
1 - Yamaha Proprietary High-Durability LF/HF Speaker Units
2 - Enhanced High-Frequency Directivity and Optimized Low-Frequency Response
3 - Lightweight, High-Performance Molded Enclosure

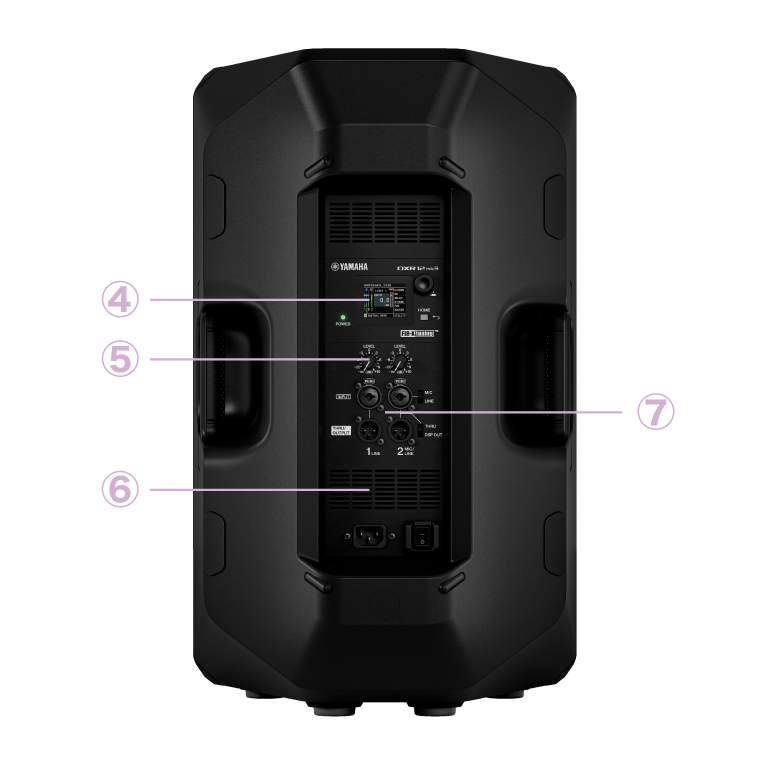

Power and High-Performance DSP that Unlocks True Sonic Potential
4 - Highly Visible, User-Friendly LCD Panel & Encoder
5 - Advanced DSP for Sophisticated Signal Processing
6 - 2000 W Class-D High-Power Amplifier
7 - Comprehensive/versatile inputs routing with Bluetooth® audio

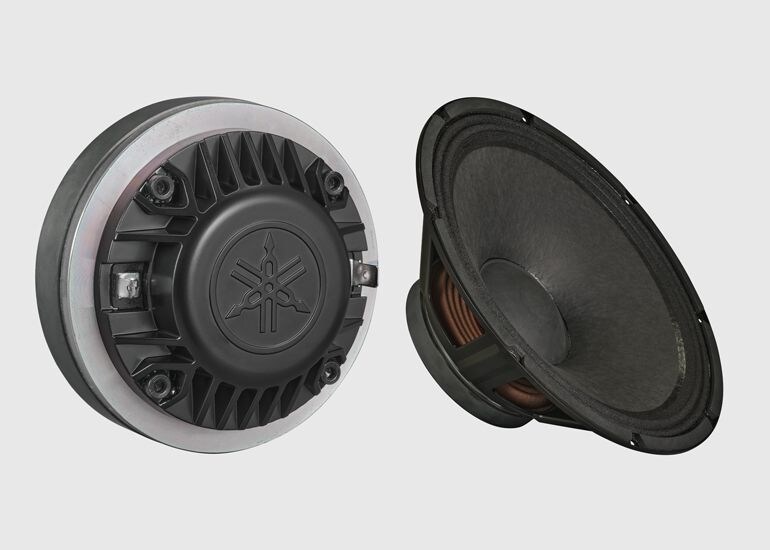

1 - Yamaha Proprietary High-Durability LF/HF Speaker Units
All DXR/CXR mk3 loudspeakers are equipped with Yamaha’s own high-durability, custom LF/HF speaker units. The LF unit ensures highly symmetrical front-rear movement for linear bass reproduction, while the HF unit features a polyimide diaphragm that eliminates audible distortion while providing exceptional durability—thus achieving both superior acoustic performance and outstanding reliability.
2 - Enhanced High-Frequency Directivity and Optimized Low-Frequency Response
The large-diameter horn secures directivity control across a wide frequency range. Optimized port positioning also reduces standing wave effects, resulting in smoother and more accurate low-frequency response.
3 - Lightweight, High-Performance Molded Enclosure
Utilizing a lightweight, high-strength, form-injection molded enclosure, the design achieves both weight reduction and attenuation of cabinet resonance that can result in bass loss. The ergonomically designed enclosure offers not only aesthetic appeal but also outstanding usability.

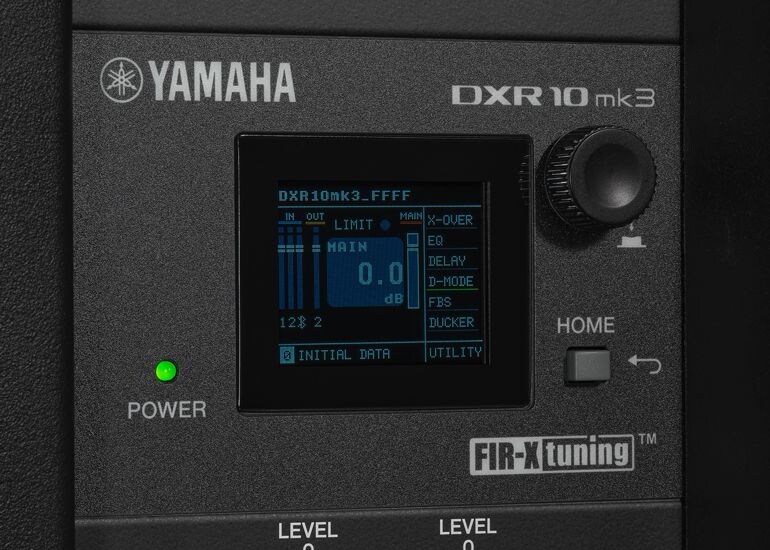

4 - Highly Visible, User-Friendly LCD Panel & Encoder
An LCD panel is mounted on the rear, allowing for fast and easy control of parameters such as preset loading, precise PEQ adjustments, delay, and routing. Up to eight user presets can be stored, and factory presets optimized for combined use with the DXS mk3 series can also be recalled.

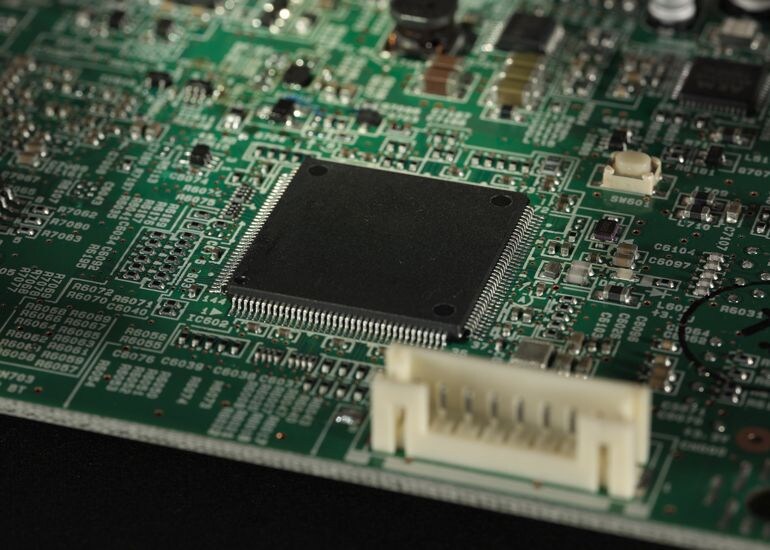

5 - Advanced DSP for Sophisticated Signal Processing
Featuring a 96 kHz internal DSP processor, the DXR mk3 series delivers high output performance and high-resolution sound quality with low latency. The crossover network employs Yamaha’s proprietary “Advanced FIR-X Tuning” technology, combining linear-phase FIR filters for network and correction EQ, achieving exceptionally smooth phase characteristics and clear, distortion-free sound.

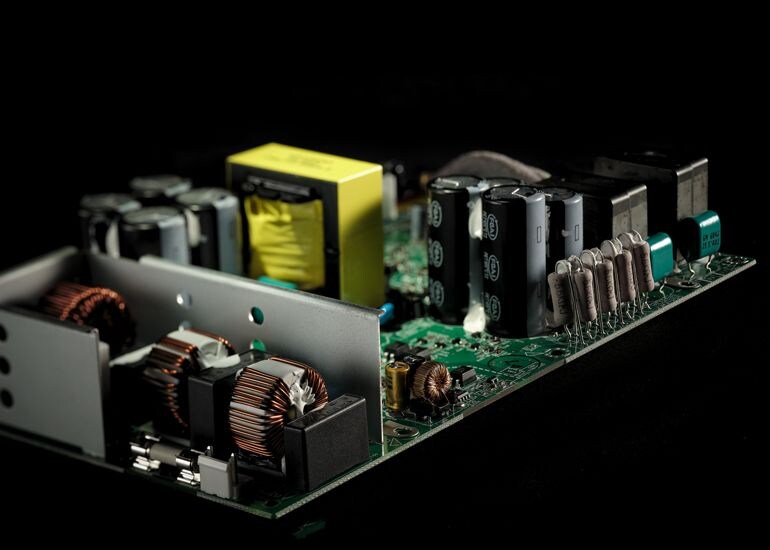

6 - 2000 W Class-D High-Power Amplifier
DXR mk3 Series loudspeakers are equipped with a highly efficient 2000 W Class-D high-power amplifier, as well as a newly designed high-efficiency switching power supply that ensures smooth and stable operation.

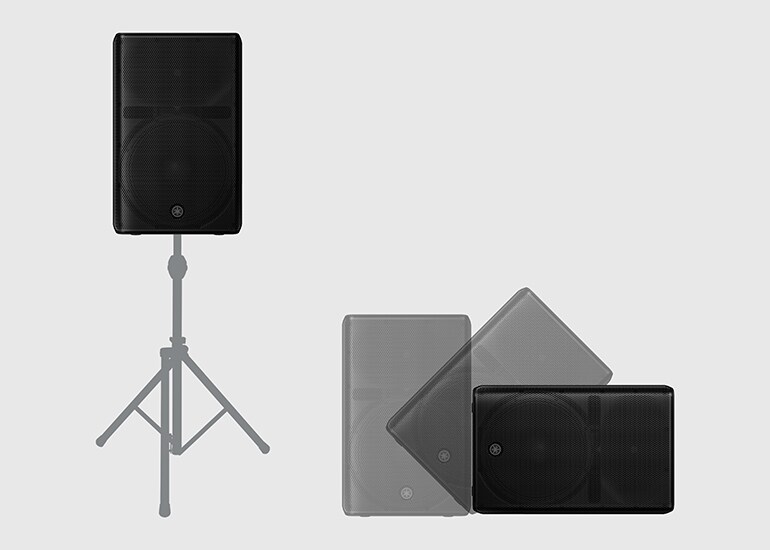

DSP Mode with AUTO V/H POSITION Function
The DXR mk3 offers DSP modes tailored for specific configurations or applications: FOH/MAIN and MONITOR. FOH/MAIN boosts high and low frequencies for main speaker use, and is the default setting. MONITOR ensures clarity for floor monitor use, suppressing excessive bass that can occur when placed on the floor. An internal accelerometer detects speaker orientation, enabling automatic mode setting (can be disabled), streamlining setup and reducing workload on site.
The DXR mk3 series also features optimized presets for a range of applications―such as DJ performance, live band sound, and speech―developed in collaboration with Yamaha by the team at our group company NEXO, who possess deep expertise in loudspeaker design and technology.

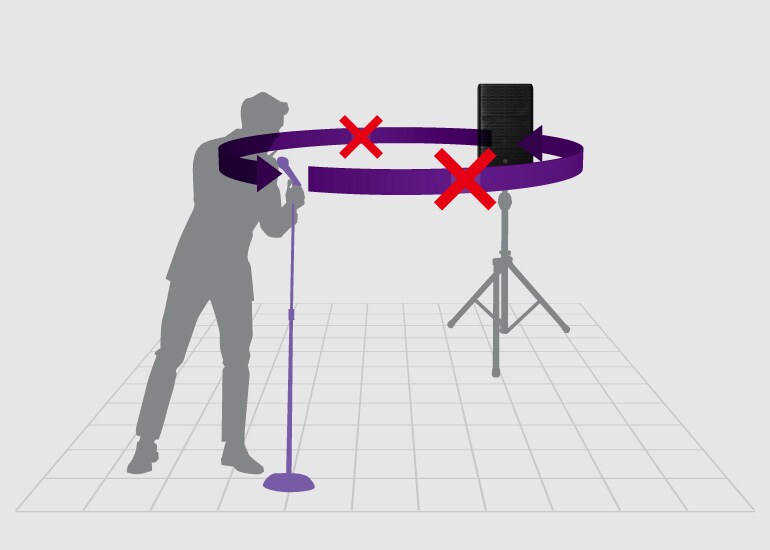

Intelligent Feedback Suppressor
Equipped with a powerful, intelligent feedback suppressor, the system automatically suppresses feedback in real time for handheld microphones (DYNAMIC mode) and detects and sets feedback-prone points for fixed microphones (FIXED mode). These modes can be used independently or in combination to dramatically reduce unpleasant feedback caused by sound looping from speaker to microphone.

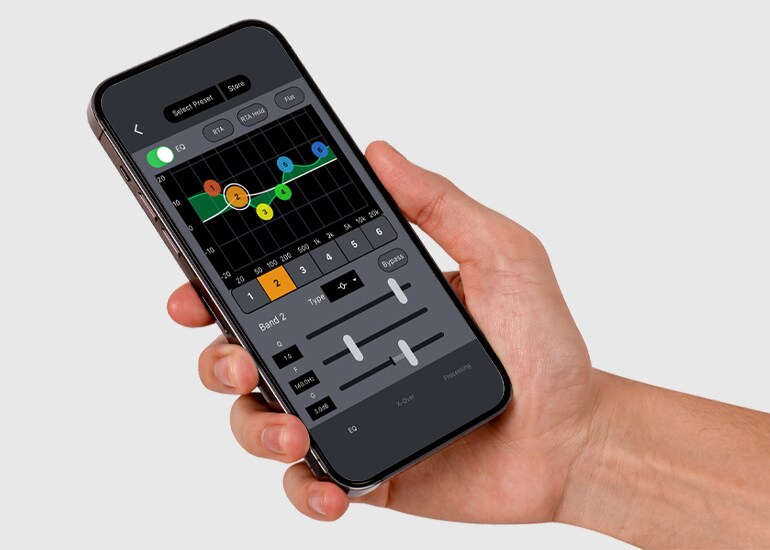

“D-Remote” Control App
“D-Remote” is a dedicated application for remote control of your DXR/DXS mk3 via iOS and Android devices over Bluetooth. It enables control of all parameters, including level, delay, EQ, crossover, FBS, ducker, identification, panel lock, and scene save/recall. Additionally, it monitors speaker limiting and temperature and displays error alerts. Up to ten devices can be connected simultaneously, with grouping available for unified level and mute control.

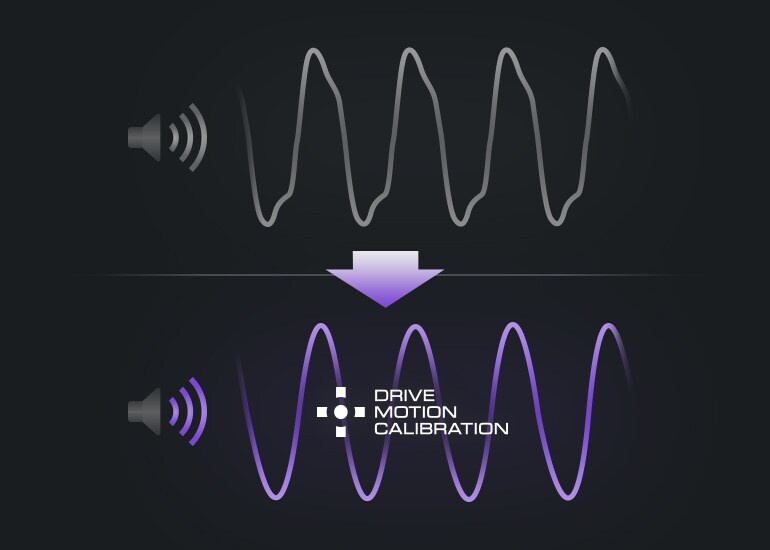

Drive Motion Calibration
The "Drive Motion Calibration" featured in the DXR mk3 series utilizes a proprietary DSP algorithm to correct speaker movement, delivering low-distortion, high-quality sound in the LF range that surpasses conventional limitations. This technology ensures that the speaker's behavior accurately follows the input signal, enabling more linear low-frequency reproduction. As a result, it achieves outstanding reliability and acoustic performance, making it a reliable choice for a range of professional environments.
Usability Pursued to the Utmost

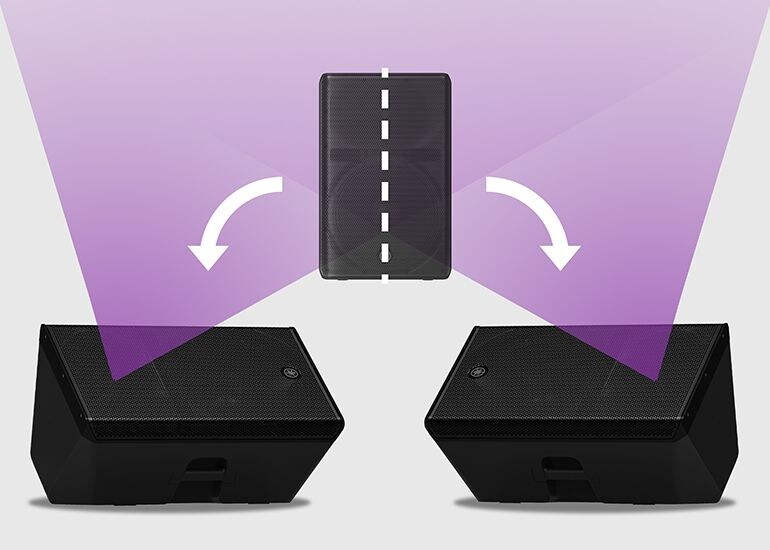

Symmetrical design
The design supports mirror placement for all models when floor-mounted, allowing symmetrical HF positioning for precise stage monitoring.

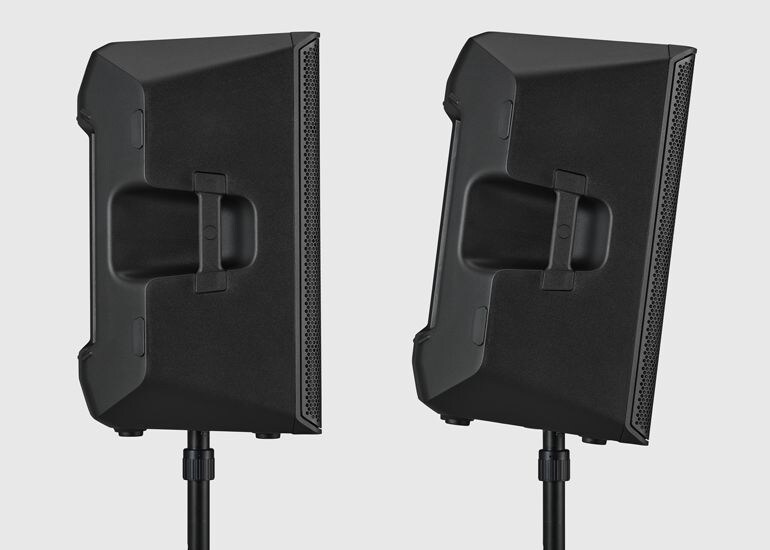

Dual-Angle Pole Socket
All DXR/CXR mk3 series models features pole mount sockets with both horizontal (0°) and 7° down-angle positions, enabling focused coverage for clearer sound delivery to the audience.

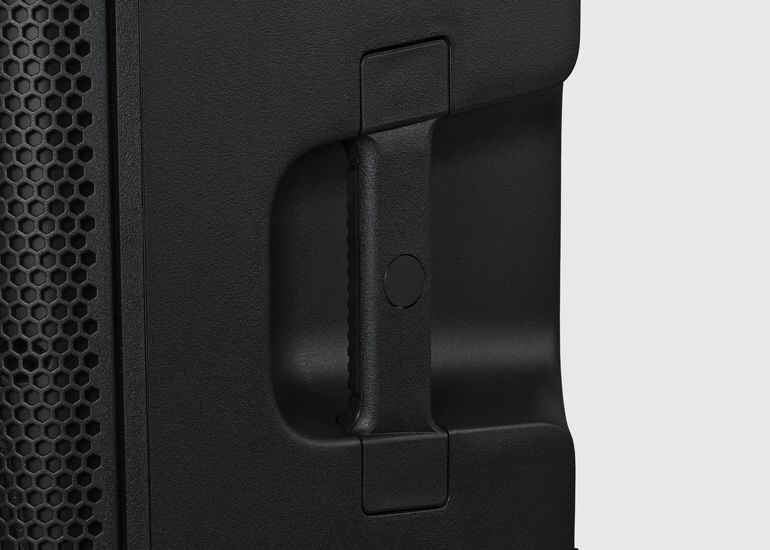

Rubber-Coated Handles
Handles are fitted with rubber surfaces for improved grip and reduced heat impact, greatly enhancing comfort during transport and setup.
Optional U-Bracket
Optional U-brackets are available for fixed installations, supporting both vertical and horizontal mounting. Compatible with K&M wall/ceiling brackets for flexible installation.

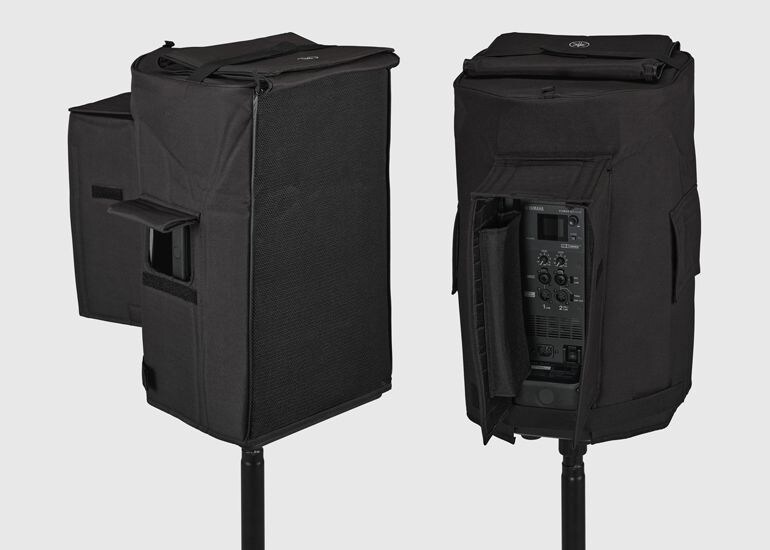

Multi-Function Speaker Covers
Optional speaker covers are available for all models, protecting speakers from scratches, dust, and dirt during transport and storage, as well as from unexpected weather during outdoor performances.

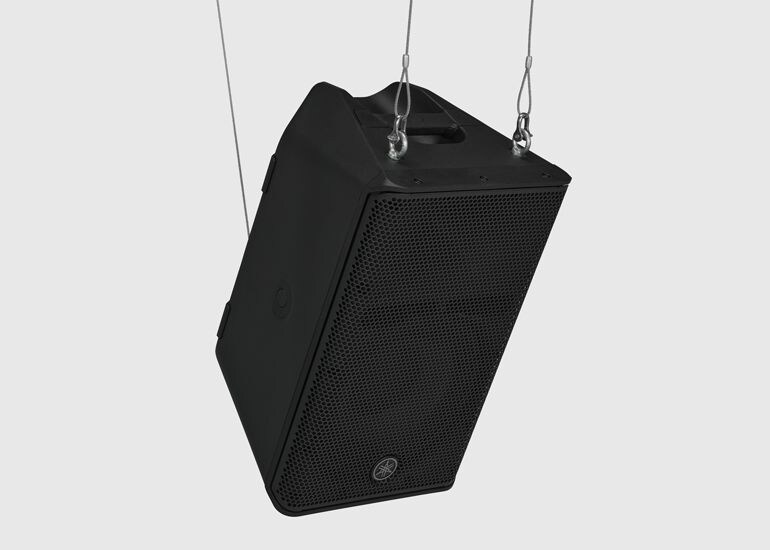

Eyebolt Rigging Points
Rigging points compatible with commercial eyebolts are provided, allowing flexible installation with wires and shackles.
Systems

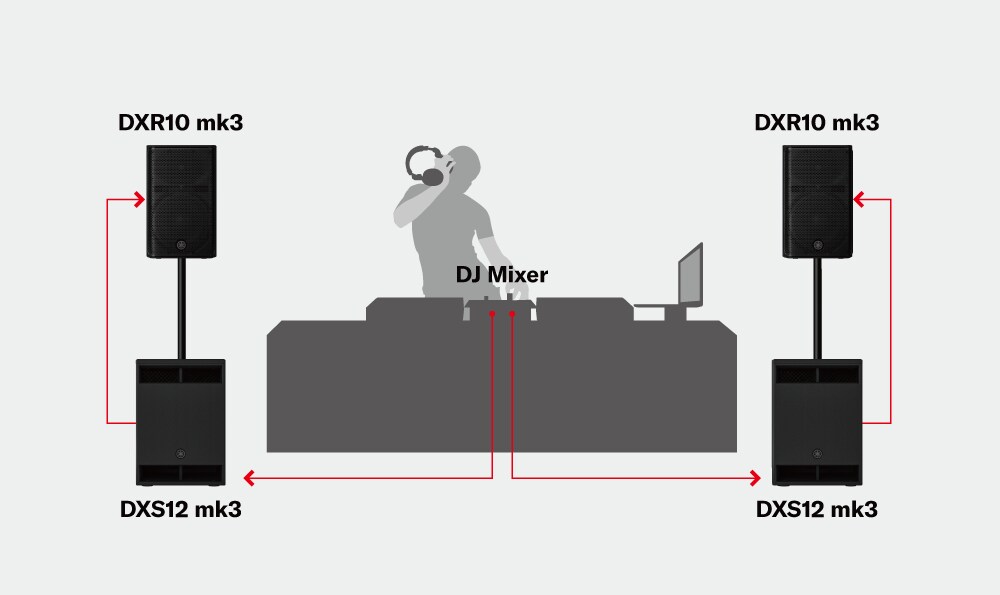

Mobile DJing

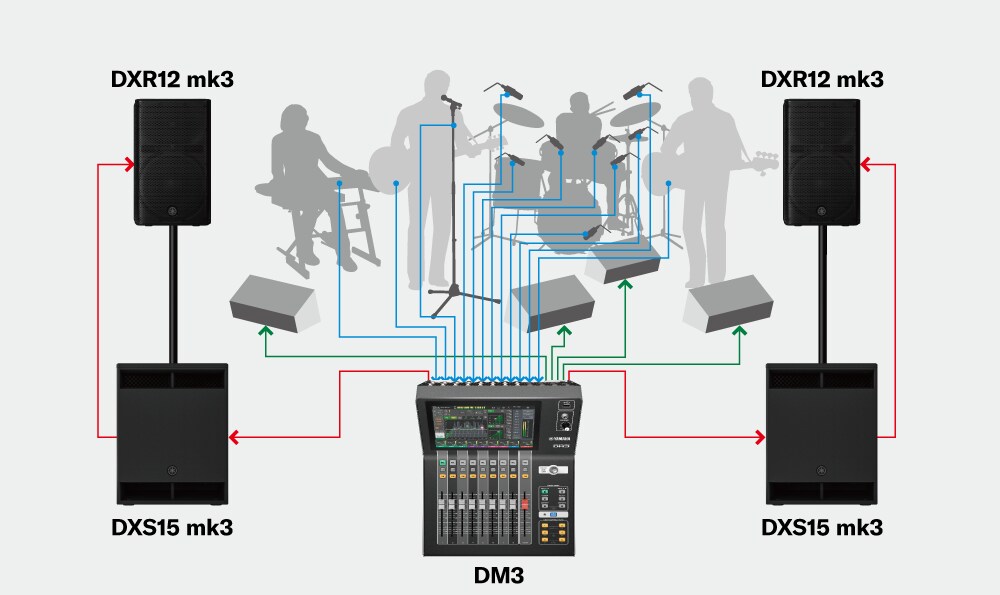

Band Performance
Band Performance Mid-size
Band Performance with Cardioid Mode
Product Information

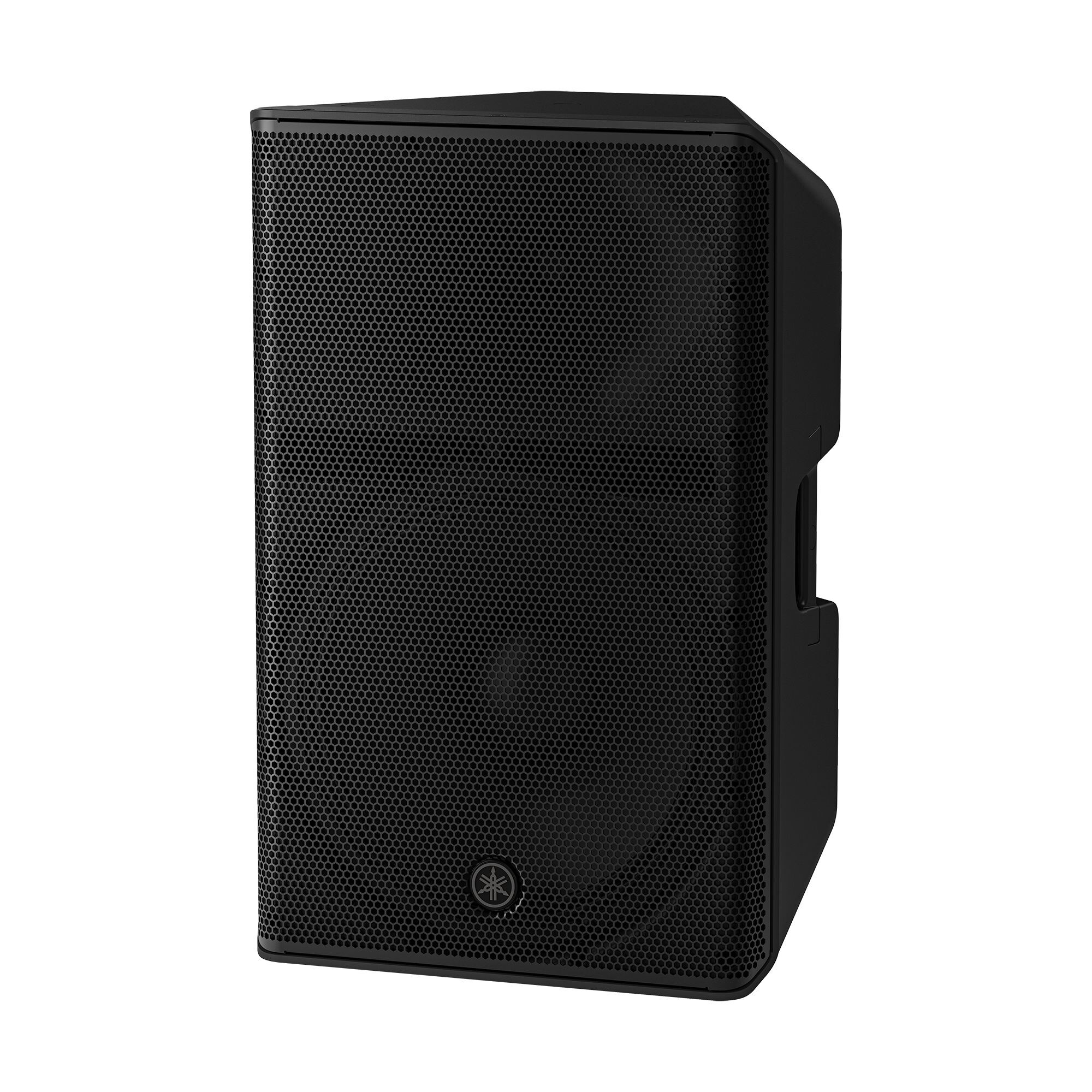

DXR15 mk3 Powered Loudspeaker
The DXR15 mk3 is a 2-way, bi-amped, powered loudspeaker that delivers the lowest frequency range in the new lineup with exceptional clarity, precision, and a powerful 134 dB SPL. Combining deep bottom end and substantial power, it is ideal as a main front-of-house speaker for DJ events or live performances that demand a strong low frequency presence. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility with powerful features that enhance the overall user experience.
- 15" LF + 1.75" HF proprietary high-durability speaker units
- The large-diameter horn secures directivity control across a wide frequency range
- Optimized port positioning reduces standing wave effects
- Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
- Newly developed 2000W Class-D amplifier
- FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
- Drive Motion Calibration™ corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
- DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"
- Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
- Compatible with audio streaming via Bluetooth®
- Intelligent feedback suppressor automatically eliminates unpleasant feedback
- Optional UB-DXR15A U-bracket allows both for vertical or horizontal use
- Optional SPCVR-DXR153 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
- Rigging points for use with eye bolts
- Dual-angle pole sockets offer both 0° or a -7° down tilt

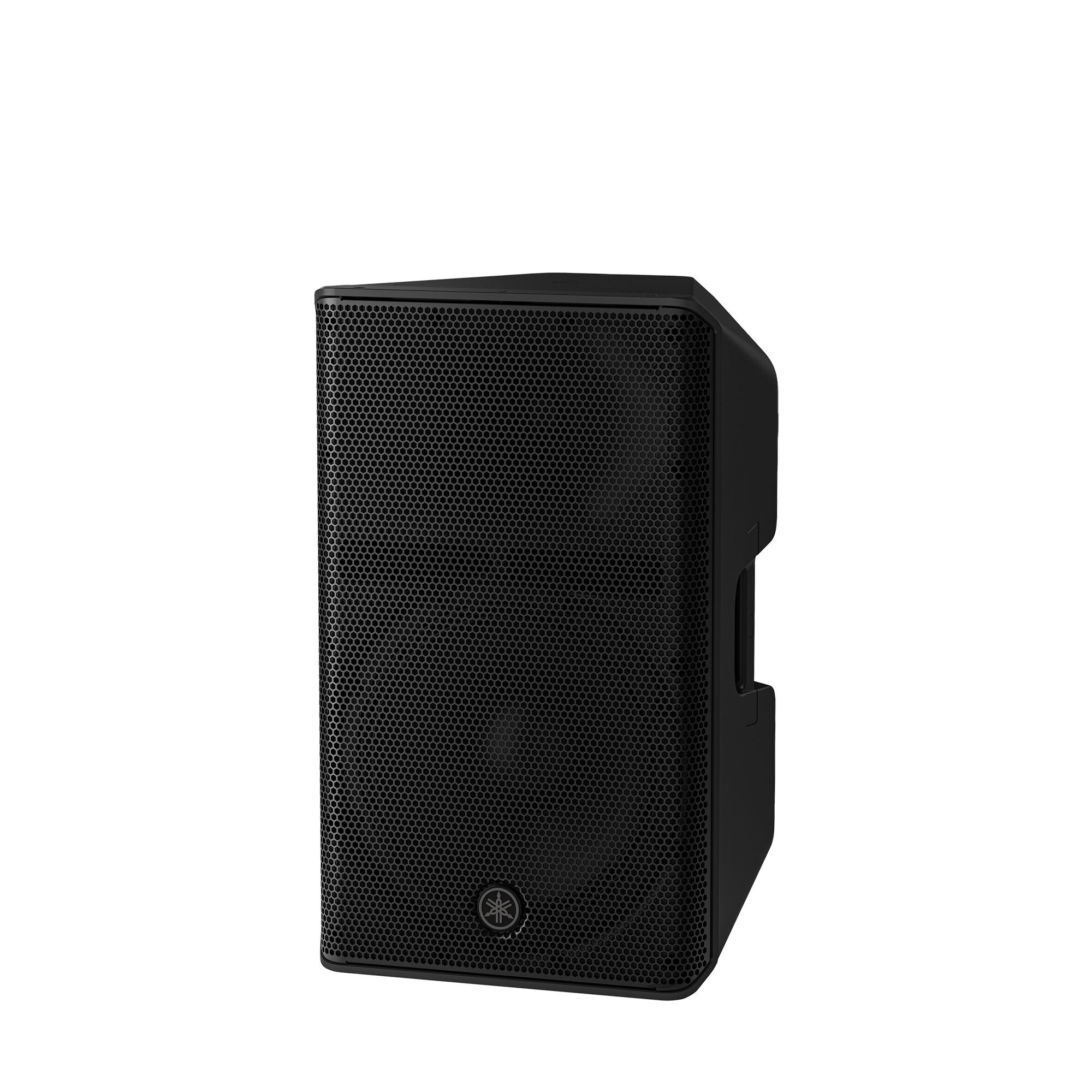

DXR12 mk3 Powered Loudspeaker
The DXR12 mk3 is a 2-way, bi-amped, powered loudspeaker that delivers a perfect balance of portability and performance, delivering exceptional clarity, precision, and a powerful 134 dB SPL output. Ideal for front-of-house use, floor monitoring applications, or even as stage side fills—the DXR12 mk3 is an excellent choice for a wide range of sound reinforcement needs. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility, with powerful features that enhance the overall user experience.
- 12" LF + 1.75" HF proprietary high-durability speaker units
- The large-diameter horn secures directivity control across a wide frequency range
- Optimized port positioning reduces standing wave effects
- Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
- Newly developed 2000W Class-D amplifier
- FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
- Drive Motion Calibration™, corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
- DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"
- Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
- Compatible with audio streaming via Bluetooth®
- Intelligent feedback suppressor automatically eliminates unpleasant feedback
- Optional UB-DXRDHR12A U-bracket allows both for vertical or horizontal use
- Optional SPCVR-DXR123 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
- Rigging points for use with eye bolts
- Dual-angle pole sockets offer both 0° or a -7° down tilt

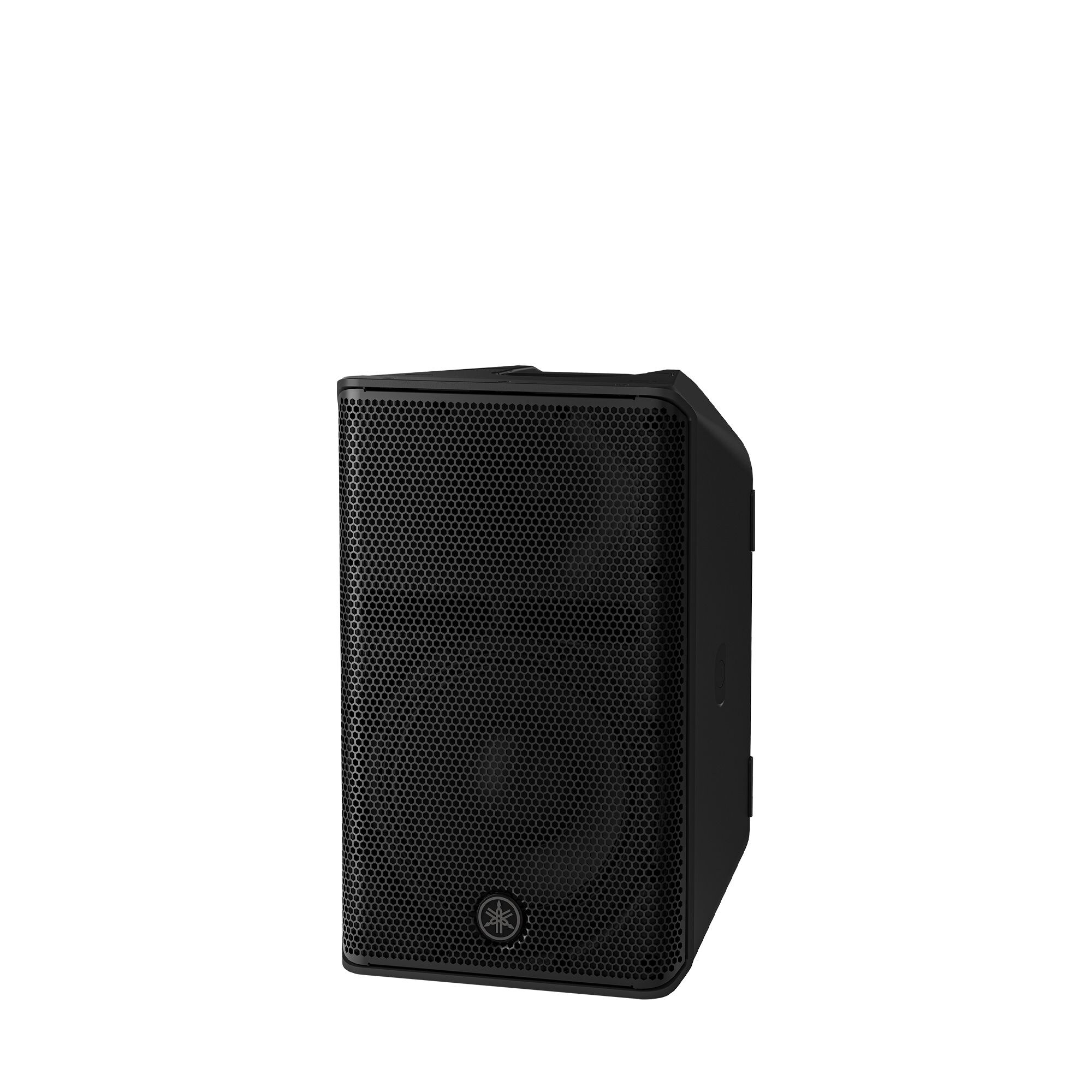

DXR10 mk3 Powered Loudspeaker
The DXR10 mk3 is a 2-way, bi-amped, powered loudspeaker and is the most compact model in the series, delivering exceptional clarity, precision, and a powerful 132 dB SPL output. Thanks to its compact, lightweight enclosure, it can function as a versatile utility speaker suitable for a wide variety of environments. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility, with powerful features that enhance the overall user experience.
- 10" LF + 1.75" HF proprietary high-durability speaker units
- The large-diameter horn secures directivity control across a wide frequency range
- Optimized port positioning reduces standing wave effects
- Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
- Newly developed 2000W Class-D amplifier
- FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
- Drive Motion Calibration™, corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
- DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"
- Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
- Compatible with audio streaming via Bluetooth®
- Intelligent feedback suppressor automatically eliminates unpleasant feedback
- Optional UB-DXRDHR10A U-bracket allows both for vertical or horizontal use
- Optional SPCVR-DXR103 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
- Rigging points for use with eye bolts
- Dual-angle pole sockets offer both 0° or a -7° down tilt
Options
Optional Speaker Brackets
Functional Speaker Cover
The colors and finishes shown may vary from those on the actual products.
