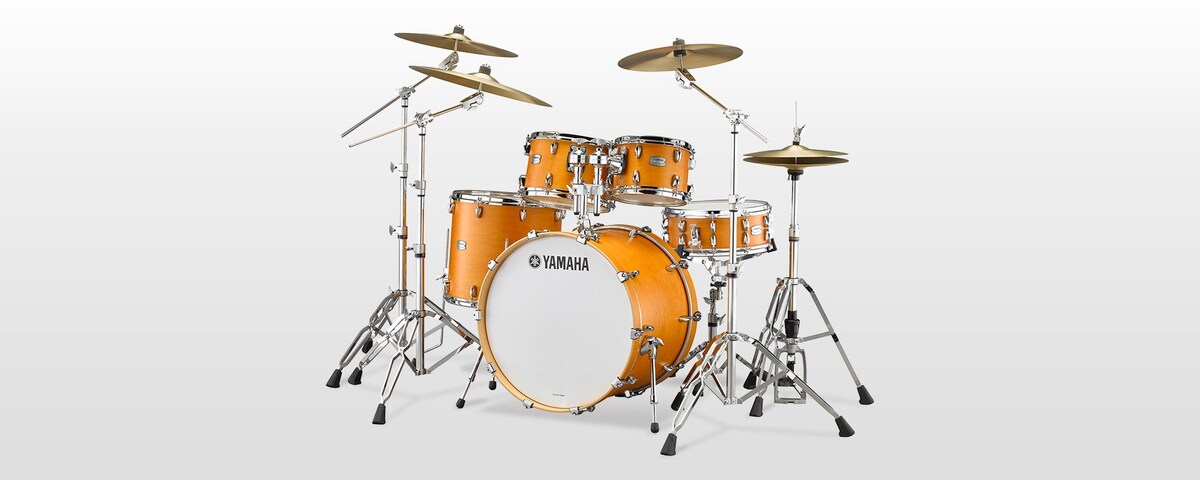

Tour Custom Drum Kit
| Tour Custom Drum Kit | ||
|---|---|---|
| Hoop | Material | TT / FT : Inverse DynaHoop , BD : Maple |
| Thickness | TT / FT : 2.3 mm, BD : 8.0 mm | |
| Lugs | Type | Absolute Lug (chrome finish) |
| Shells | Thickness | 5.6 mm |
| Material | Maple (6-ply) | |
| Head | Top | TT / FT : REMO UT Ambassador Clear |
| Bottom | TT / FT : REMO UT Ambassador Clear | |
| Front | BD : REMO Smooth White Powerstroke3 with Yamaha Logo | |
| Batter | BD : REMO Powerstroke3 Clear | |
| Bearing Edge | TT / FT / BD: 45 degrees | |
| Tom Mount | Y.E.S.S. | |
Size Variation
Shell Packages
| Set No. | Bass Drum | Floor Tom | Tom Tom | Tom Holder | |
|---|---|---|---|---|---|
| TMP2F4 | 22"×16" | 16"×15" | 12"×8" | 10"×7" | TH945C |
| TMP0F4 | 20"×15" | 14"×13" | 12"×8" | 10"×7" | TH945C |
| TMP8F3 | 18"×14" | 14"×13" | 12"×8" | CL945LB | |
Components
| Bass Drum | |||
|---|---|---|---|
| Diameter × Depth | 22"×16" | 20"×15" | 18"×14" |
| Model No. | TMB-2216 | TMB-2015 | TMB-1814 |
| Floor Tom | ||
|---|---|---|
| Diameter × Depth | 16"×15" | 14"×13" |
| Model No. | TMF-1615 | TMF-1413 |
| Tom Tom | ||||
|---|---|---|---|---|
| Diameter × Depth | 13"×9" | 12"×8" | 10"×7" | 8"×7" |
| Model No. | TMT-1309 | TMT-1208 | TMT-1007 | TMT-0807 |
| Snare Drums | ||
|---|---|---|
| Diameter × Depth | 14"×5.5" | 14"×6.5" |
| Model No. | TMS-1455 | TMS-1465 |
