| General Specifications |
| General |
Construction |
Bolt-on |
Bolt-on |
Bolt-on |
Bolt-on |
| Scale Length |
25-1/2" (648.0 mm) |
25-1/2" (648.0 mm) |
25-1/2" (648.0 mm) |
25-1/2" (648.0 mm) |
| Body |
Body Materials |
Alder |
Alder |
Alder |
Alder |
| Body Finish |
Gloss Polyurethane |
Gloss Polyurethane |
Gloss Polyurethane |
Gloss Polyurethane |
| Neck |
Neck Materials |
Maple |
Maple |
Maple |
Maple |
| Neck Finish |
Custom Tinted Satin / Polyurethane |
Custom Tinted Satin / Polyurethane |
Natural Smooth Satin / Polyurethane |
Natural Smooth Satin / Polyurethane |
| Fingerboard Materials |
Rosewood |
Maple |
Rosewood |
Maple |
| Fingerboard Radius |
9.5" -12" (241.3 - 304.8 mm) Compound Radius |
9.5" -12" (241.3 - 304.8 mm) Compound Radius |
12" (304.8 mm) |
12" (304.8 mm) |
| Fret Wire |
Medium Jumbo / Stainless Steel |
Medium Jumbo / Stainless Steel |
Medium Jumbo / Stainless Steel |
Medium Jumbo / Stainless Steel |
| Number of Frets |
22 |
22 |
22 |
22 |
| Nut Materials |
Graph Tech TUSQ |
Graph Tech TUSQ |
Graph Tech TUSQ |
Graph Tech TUSQ |
| Neck Width @ 0 Fret / 12th Fret |
42.0 / 52.4 mm |
42.0 / 52.4 mm |
42.0 / 52.4 mm |
42.0 / 52.4 mm |
| Thickness @1st Fret / 12th Fret |
21.5 / 23.9 mm |
21.5 / 23.9 mm |
21.5 / 23.9 mm |
21.5 / 23.9 mm |
| Electronics |
Neck Pickup |
Reflectone EH7n: Humbucker |
Reflectone EH7n: Humbucker |
Reflectone EH7n: Humbucker |
Reflectone EH7n: Humbucker |
| Middle Pickup |
- |
- |
- |
- |
| Bridge Pickup |
Reflectone HT7b: Single Coil |
Reflectone HT7b: Single Coil |
Reflectone HT7b: Single Coil |
Reflectone HT7b: Single Coil |

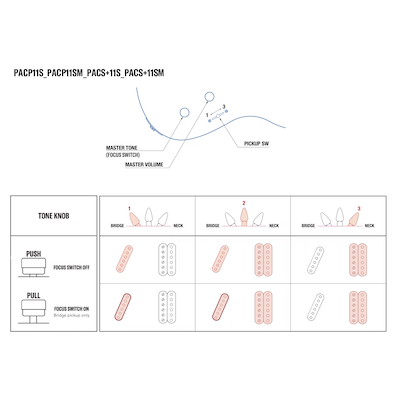

| Controls |
Master Volume with high-pass circuit, Master Tone (Push-Pull Focus Switch for Single Coil) |
Master Volume with high-pass circuit, Master Tone (Push-Pull Focus Switch for Single Coil) |
Master Volume with high-pass circuit, Master Tone (Push-Pull Focus Switch for Single Coil) |
Master Volume with high-pass circuit, Master Tone (Push-Pull Focus Switch for Single Coil) |
| Pickup Switch |
3-Position Lever Switch |
3-Position Lever Switch |
3-Position Lever Switch |
3-Position Lever Switch |
| Hardware |
Bridge |
Gotoh BC-TS1S (chrome) w/ compensated 3-brass saddle |
Gotoh BC-TS1S (chrome) w/ compensated 3-brass saddle |
Gotoh BC-TS1S (chrome) w/ compensated 3-brass saddle |
Gotoh BC-TS1S (chrome) w/ compensated 3-brass saddle |
| Tremolo Arm |
- |
- |
- |
- |
| String Spacing |
10.8 mm |
10.8 mm |
10.8 mm |
10.8 mm |
| Tailpiece |
- |
- |
- |
- |
| Tuning Machines |
Gotoh Locking Tuners |
Gotoh Locking Tuners |
Gotoh Locking Tuners |
Gotoh Locking Tuners |
| Pickguard |
Shell White: 4ply Tortoiseshell, Other colors: 3ply Parchment |
3ply Parchment |
3ply Parchment |
3ply Parchment |
| Others |
String Gauge |
D'Addario XL-110 / 0.010-0.046 |
D'Addario XL-110 / 0.010-0.046 |
D'Addario XL-110 / 0.010-0.046 |
D'Addario XL-110 / 0.010-0.046 |
| Case |
Hardshell Case |
Hardshell Case |
Gig Bag |
Gig Bag |
| Special Features |
I.R.A. Treatment |
I.R.A. Treatment |
- |
- |
