ProVisionaire Design
Integrated design software for a variety of Yamaha audio equipment
ProVisionaire Design is a software application for Windows operating systems that allows comprehensive, intuitive design of sound systems that use compatible Yamaha products. It is compatible with a wide range of Yamaha products including the DME Series/MRX7-D/MTX processors, XMV/PC‐D amplifiers, Rio/Tio interfaces, PoE speakers, ADECIA solutions, and more.
ProVisionaire Design facilitates sound system design and setup by allowing flexible component layout, signal routing, and parameter editing in open-architecture processors such as the DME series and MRX7-D. It also provides a comprehensive overview of components and signal routing in MTX series fixed-architecture processors. A wide range of high-quality audio components that only a leader in the field of professional sound reproduction can provide is supported including REV-X for refined reverb, and the Dugan Auto Mixer for flawless automated mixing. It also supports logic components that can be used to create control sequences. ProVisionaire Design can be used in conjunction with the ProVisionaire Control software applications for comprehensive control of any project, from system design and setup to everyday operation and management. Parameters in ProVisionaire Design can be assigned to ProVisionaire Control PLUS to easily create custom control panels.

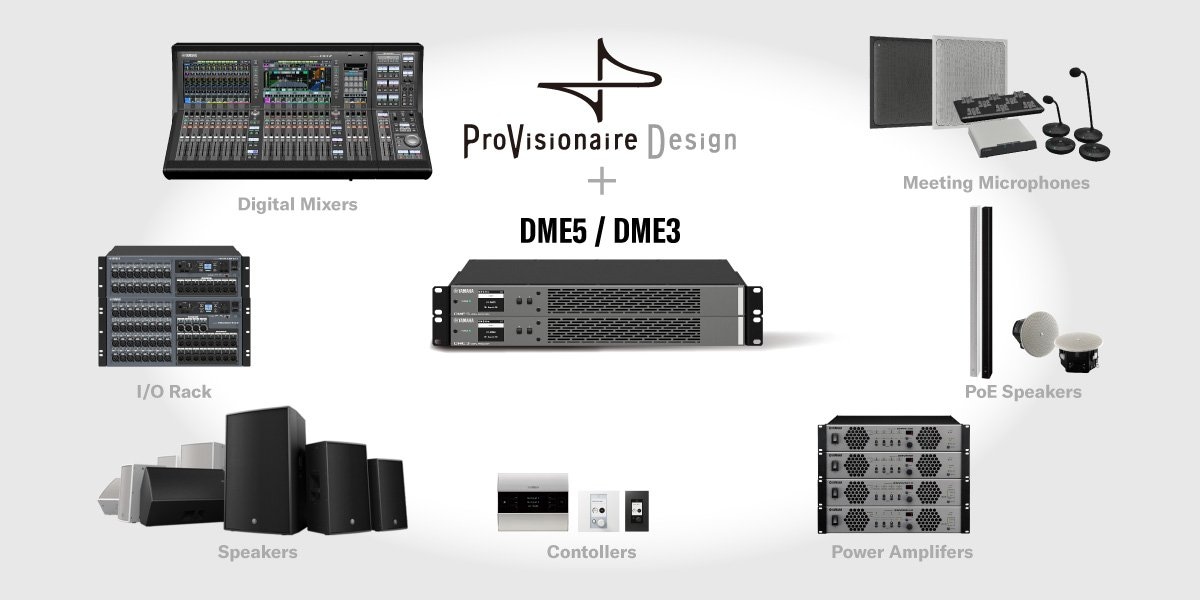

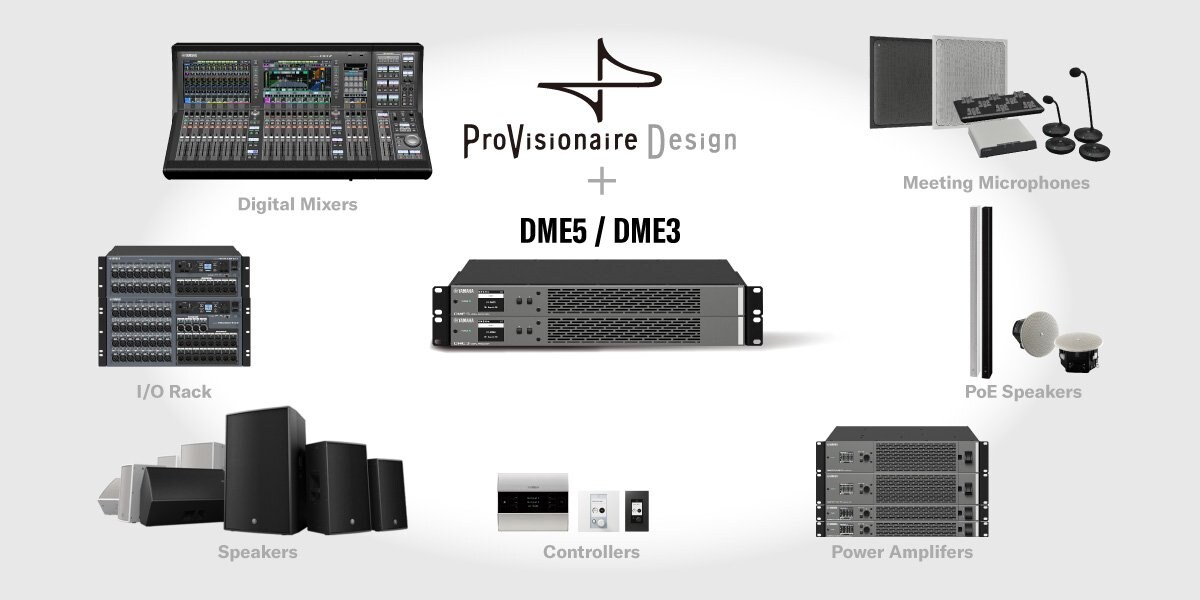

DME5/DME3 conductor component
Conductor is a new component featuring DME5/DME3 and running ProVisionaire Design V3.0 or later. DME5/DME3 functions as the system's conductor, enabling centralized configuration of all devices within the system via Provisionaire Design. Previously, destinations and commands had to be individually assembled for each Yamaha device. The Conductor function now allows unified configuration via drag-and-drop within ProVisionaire Design.

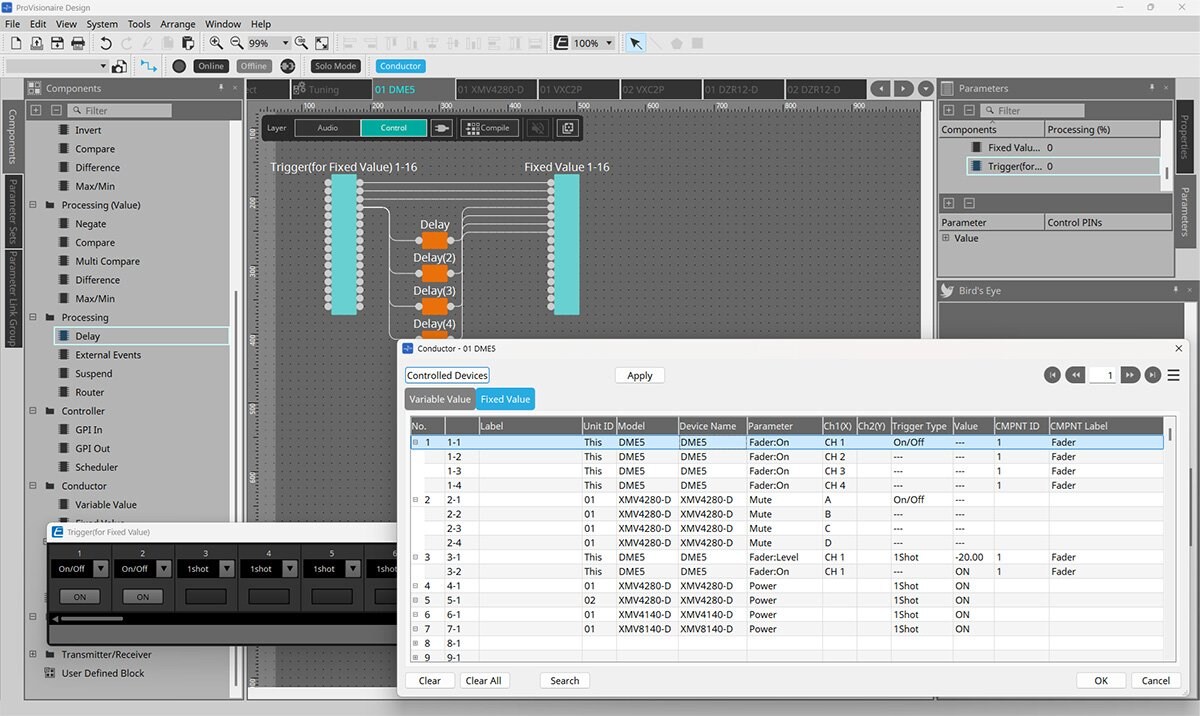

Fixed Value

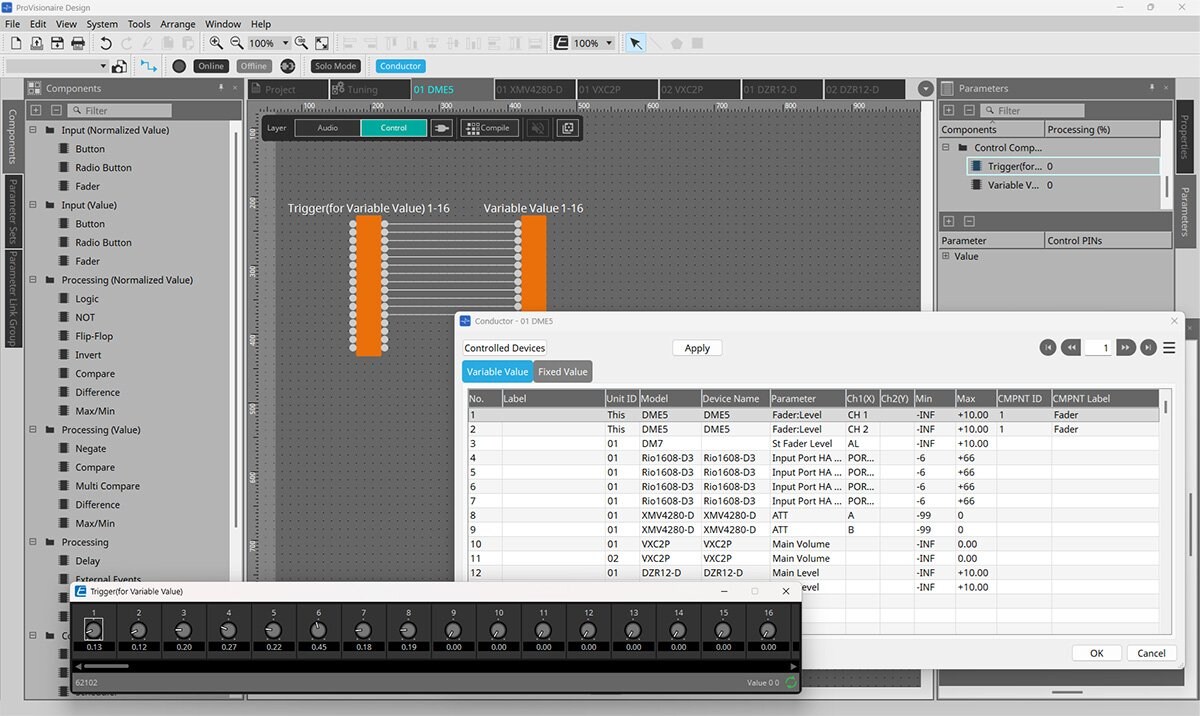

Variable Value
Flexible Audio/Control configuration
Audio configuration
Open-architecture signal processors like DME feature a wide array of freely configurable Audio Components. Within PVD's Device Sheet, you can intuitively build audio flows tailored to your system requirements.
The following are representative components included in ProVisionaire. Other basic components such as combiners, delays, dynamics, effects, EQ, routers, source selectors, and advanced components like Comp260 and DCA can also be configured.

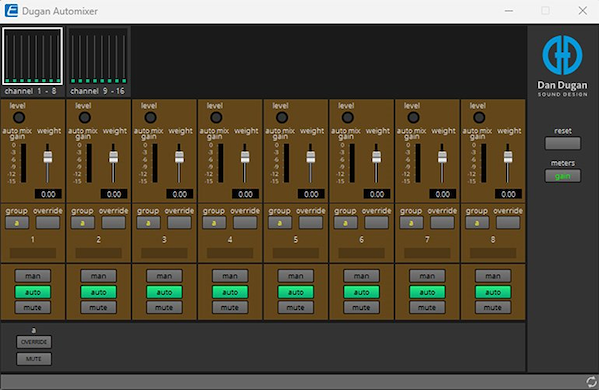

Dugan Automixer

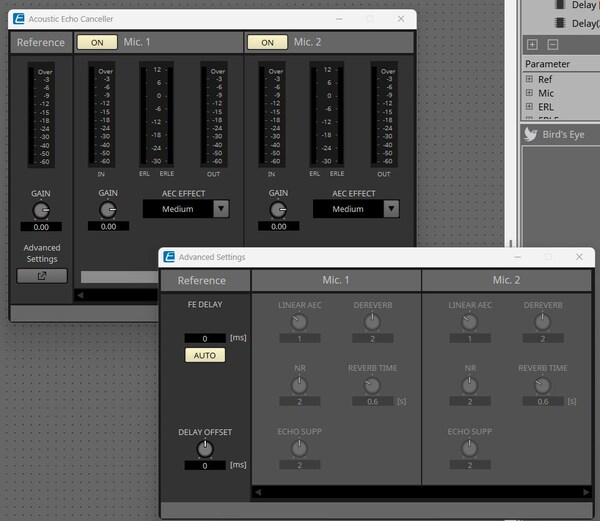

Acoustic Echo Canceller
Matrix Mixer
Control configuration
By using control components, you can recall parameters in sequence based on simple logic principles governed by statements such as AND, OR, COMPARE. It can be used to describe a wide range of complex relationships in a process by wiring control component and audio component. The logic function enables more complex control designs that go beyond just GPI control, allowing us to meet the detailed requirements of our users.

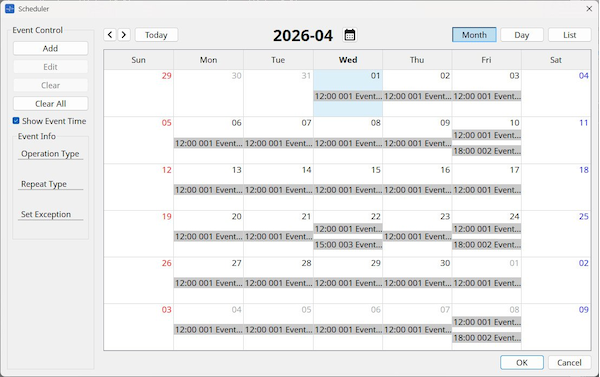

Scheduler

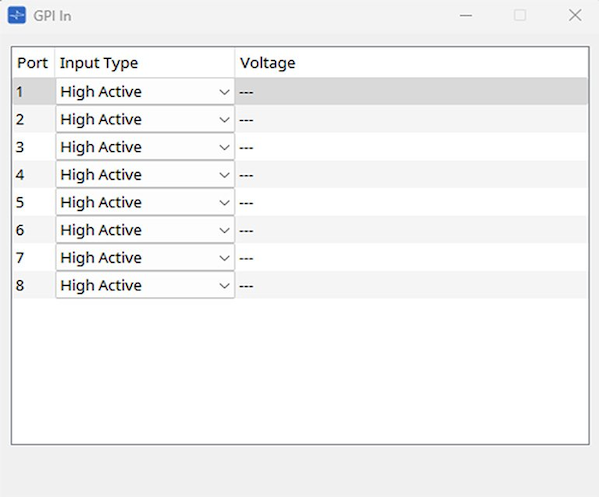

GPI

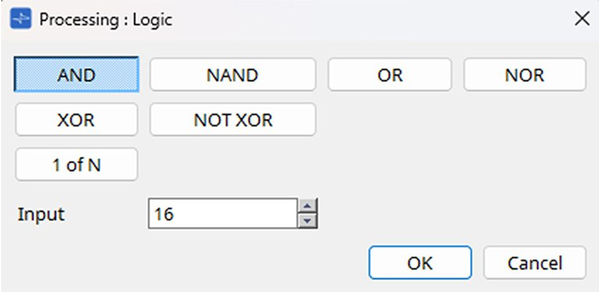

Logic
Supported Device
| Product | Model* |
|---|---|
| NEXO Immersive Audio Processor | DME10 |
| Signal Processor | DME7 |
| DME5, DME3 | |
| MRX7-D | |
| MTX5-D, MTX3 | |
| Power Amplifier | XMS24s8-D, XMS12s8-D, XMS12s4-D, XMS06s4-D, XMS24s-8, XMS12s-8, XMS12s4, XMS06s4 |
| PC412-D, PC412-DI, PC406-D, PC406-DI | |
| XMV8280, XMV8280-D, XMV8140, XMV8140-D, XMV4280, XMV4280-D, XMV4140, XMV4140-D | |
| I/O | EXi8, EXo8 |
| RSio64-D | |
| Rio3224-D2, Rio1608-D2 | |
| Rio3224-D3, Rio1608-D3 | |
| Tio1608-D, Tio1608-D2 | |
| Speaker | DZR315-D, DZR315-DW, DZR15-D, DZR15-DW, DZR12-D, DZR12-DW, DZR10-D, DZR10-DW |
| DXS18XLF-D, DXS18XLF-DW, DXS15XLF-D, DXS15XLF-DW | |
| VXL1-16P | |
| VXC2P | |
| Meeting Microphone | RM-CG, RM-TT |
| Wireless Microphone System | RM-WAP-8, RM-WAP-16 |
| Controller | PGM1, MCP1, MCP2, CTL-BN1 |
Devices that Support Design
*There are models that are not available in some regions.
Audio configuration
ProVisionaire Design supports high-performance audio and live performance system design for a large number of audio components. In systems based around the MRX7-D, it allows the device’s components to be freely and flexibly laid out, and internal parameters to be easily adjusted to achieve the required sonic results. Available components range from basic essentials such as Combiner, Delay, Dynamics, Effect, EQ, Filter, Meter, Matrix Mixer, Router, Source Selector, and Speaker Processor to more high-level functions such as Comp260, DCA, Dugan Automixer, REV-X and more.
Control configuration
By using control components, you can recall parameters in sequence based on simple logic principles governed by statements such as AND, OR, COMPARE. It can be used to describe a wide range of complex relationships in a process by wiring control component and audio component. The logic function enables more complex control designs that go beyond just GPI control, allowing us to meet the detailed requirements of our users.
Preparation
Offline Simulation (supports DME series)
Offline Simulation (supports DME series)
- Audio routing for logic control setups created offline can be checked and tested without the need to actually have any devices connected.
Probe Monitoring (supports DME series)
Probe Monitoring (supports DME series)
- Two probe monitoring points can be defined.
- The signals from the two probe monitor points can be assigned to different output channels and monitored independently.
- Advanced applications of two probe monitor points to check the correlation between the processor input signal and direct microphone signal.

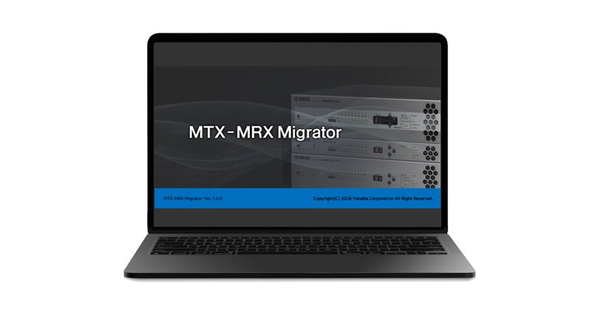

MTX-MRX Migrator
MTX-MRX Migrator
MTX-MRX Migrator converts MTX and MRX series settings from MTX-MRX Editor project files into configuration data for ProVisionaire Design.
Preconfigured project files for faster system design
ProVisionaire Data Library provides system templates that serve as starting points for designing audio systems with ProVisionaire. Each template includes a preconfigured PVD file and a user guide detailing the equipment list, physical diagram, and system configuration. These PVD files can be easily adapted to match specific system requirements, helping streamline the initial design process and accelerate system configuration.
Product Information
ProVisionaire Design
ProVisionaire Design is a Windows application for designing, configuring, controlling, and monitoring Yamaha professional audio systems, whether offline or connected to the system network.
