MGX Series Digital Mixing Console

The Digital Evolution of an Analog Classic

Acclaimed for their exceptional sound quality, versatility, and intuitive design, Yamaha’s MG series compact analog mixers have become an industry standard for users in a vast range of applications. The MGX series breaks considerable new ground, ushering in a new era of MG excellence, driven by a deeper pursuit of "True Sound" that faithfully captures and reproduces every nuance of a performance, as well as an impressive expansion of functionality and system flexibility to adapt to the ever-changing landscape of sound reinforcement and music production.

Blending advanced digital technology with the trusted legacy of the MG series, the MGX series is adept at handling a variety of demanding applications, including live sound, installed sound systems, podcast/live streaming and recording, as well as hybrid live and other video production applications that require handling not only audio but also video signals, supported by our two video models.

The digital evolution of an analog classic, the MGX series digital mixers will inspire performers, engineers, operators, and audiences in any audio environment, with their superior sound and exceptional performance.

MGX16

The portable MGX16 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX16 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

MGX12

The portable MGX12 compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX12 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

MGX16V

The MGX16V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX16V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

MGX12V

The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX12V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

The Sound That Sets Us Apart

Deeply rooted in Yamaha's heritage of designing industry standard analog mixers, the MGX series carries a unique sonic signature cultivated from our unrivaled experience as a manufacturer of a diverse range of both audio products and musical instruments.

This sets the MGX series apart from other digital mixers, capturing the nuanced richness, with the precision and responsiveness required to faithfully convey every dynamic element of a musician’s or performer’s expression—qualities that define the very essence of our pursuit of “True Sound”. The implementation of our most cutting-edge technologies, making the MGX series an obvious choice for all users seeking state-of-the-art performance and authentic, premium sound quality.

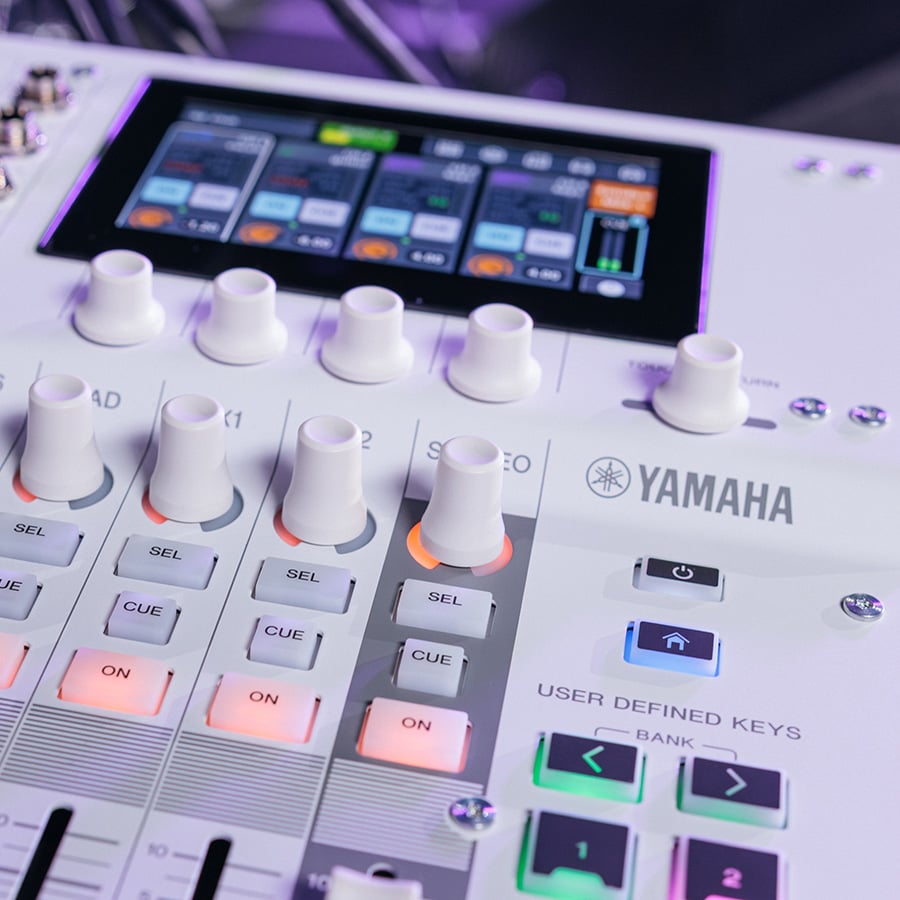

Where Mixing Capability Meets Creativity

The MGX series comes equipped with all the requisite capabilities of a professional mixer and so much more. Versatile connectivity, flexible routing, and powerful mixing functions, all of which are crucial to successfully meet the diverse and demanding requirements of these applications.

Backed by advanced features like dual USB ports, Bluetooth, microSD multi-track recording/playback, as well as two models equipped with a HDMI-USB video interface, the MGX series is capable of outstanding adaptability, empowering musicians, live audio professionals, streamers, and creators to hand any production with confidence.

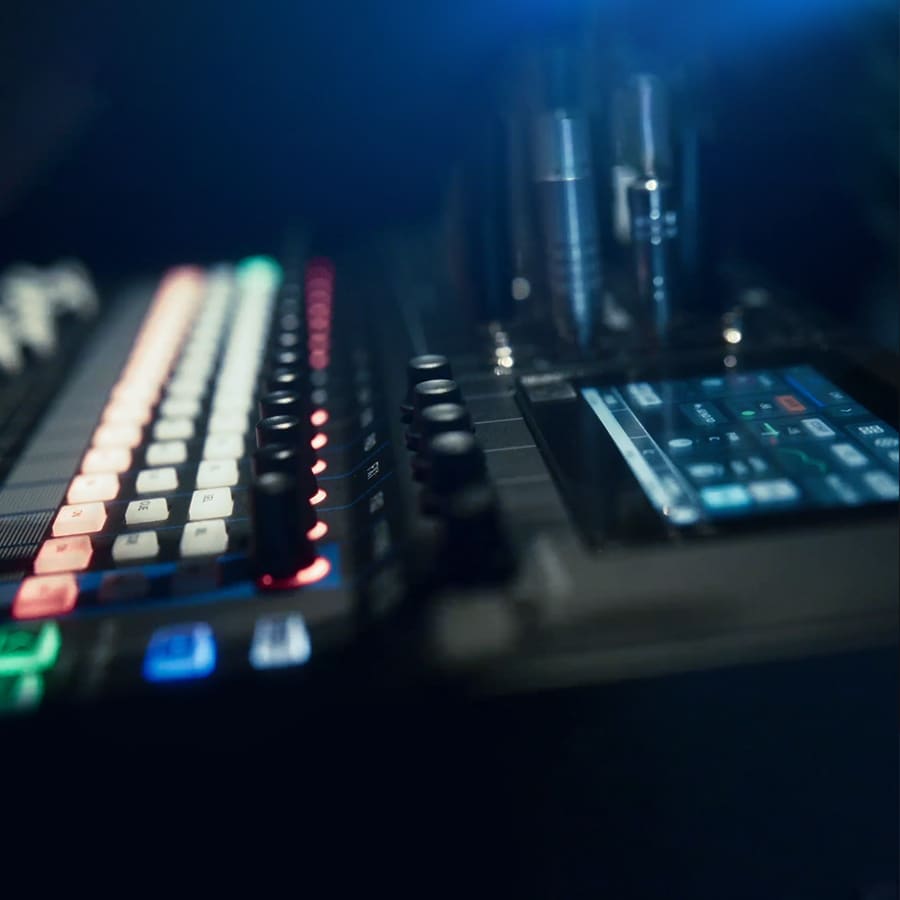

Serious Functionality. Seamless Execution.

Getting professional-level quality from a versatile state-of-the-art mixing console is now more accessible than ever. The MGX series is designed for intuitive and fast operation that allows for quick access to essential controls and seamless adjustment of settings without interrupting your workflow.

The versatility of the MGX series ensures that it can adapt to any setting with ease, giving musicians, engineers, producers, streamers, and system integrators, all the tools they need to easily and reliably produce professional results with ease.

Bring Your Creative Vision to Life

Audio environment evolution requires modern solutions—that’s why we’ve equipped two MGX-V models of the MGX series with HDMI-USB video capture/pass-through capability, designed to support and enhance hybrid live performances, live streaming, virtual events, and video content creation.

This advanced integration allows you to seamlessly combine high-quality audio and video signals in a compact system capable of bringing your vision to life.

A Full-Scale Operation

With an ever-expanding product ecosystem and a wide range of compatible controllers, your MGX console becomes a powerful partner in both your creative journey, and your impact as a professional—unlocking possibilities that extend far beyond those of a traditional mixer.

Powered by Yamaha, Steinberg, and trusted partners like Elgato and OBS, this evolving collaboration aims to deliver the tools and services that drive your creativity and your career forward.

Application Base

Preview
LIVE SOUND: Small-scale event
LIVE SOUND: Corporate event
LIVE SOUND: Musician PA
LIVE SOUND: Streaming event (Hybrid live)
STREAMING: Four-Person podcast
STREAMING: Game streaming
PRODUCTION: PC-USB recording
PRODUCTION: Stand-alone recording
PRODUCTION: Small-scale video production
INSTALLED SOUND: Small-scale facility
INSTALLED SOUND: House of Worship

MGX-V models
LIVE SOUND: Small-scale eventYes
LIVE SOUND: Corporate eventYes
LIVE SOUND: Musician PAYes (Simple mode/Assistive Function)
LIVE SOUND: Streaming event (Hybrid live)Yes (HDMI-USB Video interface, Dual USB-MAIN/SUB, Multi-Stream Audio)
STREAMING: Four-Person podcastYes (4 Mic Inputs / 4 Headphone Outputs)
STREAMING: Game streamingYes (HDMI-USB Video interface, Dual USB-MAIN/SUB, Multi-Stream Audio)
PRODUCTION: PC-USB recordingYes (Multi-track recording)
PRODUCTION: Stand-alone recordingYes (microSD: Multi-track recording)
PRODUCTION: Small-scale video productionYes (HDMI-USB Video interface, Dual USB-MAIN/SUB, Multi-Stream Audio)
INSTALLED SOUND: Small-scale facilityYes (Color options: Black / White)
INSTALLED SOUND: House of WorshipYes (Color options: Black / White)

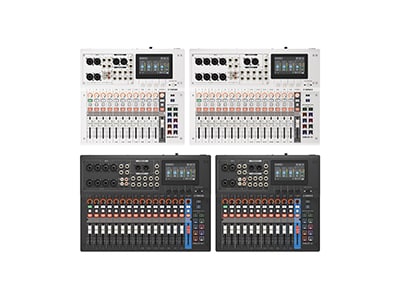

MGX models
LIVE SOUND: Small-scale eventYes
LIVE SOUND: Corporate eventYes
LIVE SOUND: Musician PAYes (Simple mode/Assistive Function)
LIVE SOUND: Streaming event (Hybrid live)Yes (Dual USB-MAIN/SUB, Multi-Stream Audio)
STREAMING: Four-Person podcastYes (4 Mic Inputs / 4 Headphone Outputs)
STREAMING: Game streamingYes (Dual USB-MAIN/SUB, Multi-Stream Audio)
PRODUCTION: PC-USB recordingYes (Multi-track recording)
PRODUCTION: Stand-alone recordingYes (microSD: Multi-track recording)
PRODUCTION: Small-scale video productionYes (Dual USB-MAIN/SUB, Multi-Stream Audio)
INSTALLED SOUND: Small-scale facilityYes (Color options: Black / White)
INSTALLED SOUND: House of WorshipYes (Color options: Black / White)

DM3 Series
LIVE SOUND: Small-scale eventYes
LIVE SOUND: Corporate eventYes
LIVE SOUND: Musician PAYes
LIVE SOUND: Streaming event (Hybrid live)Yes
STREAMING: Four-Person podcastYes
STREAMING: Game streamingYes
PRODUCTION: PC-USB recordingYes (Multi-track recording)
PRODUCTION: Stand-alone recordingYes (USB storage device: 2-track recording)
PRODUCTION: Small-scale video productionYes
INSTALLED SOUND: Small-scale facilityYes
INSTALLED SOUND: House of WorshipYes

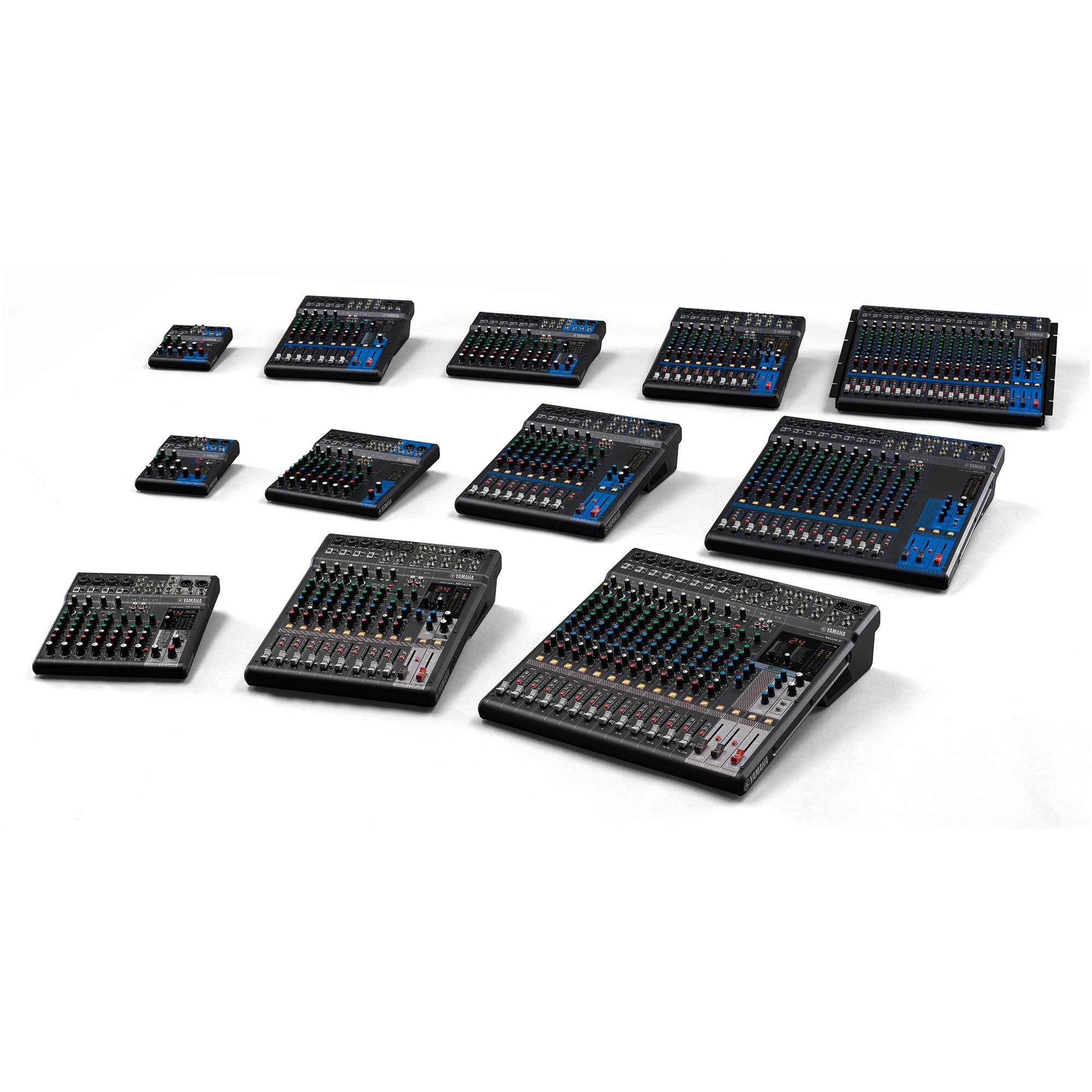

MG-XU models
LIVE SOUND: Small-scale eventYes
LIVE SOUND: Corporate eventYes
LIVE SOUND: Musician PAYes
LIVE SOUND: Streaming event (Hybrid live)No
STREAMING: Four-Person podcastYes
STREAMING: Game streamingNo
PRODUCTION: PC-USB recordingYes (2-track recording)
PRODUCTION: Stand-alone recordingNo
PRODUCTION: Small-scale video productionYes
INSTALLED SOUND: Small-scale facilityYes
INSTALLED SOUND: House of WorshipYes

See More Details

Function Base (Quick Specs)

Preview
Color variants
USB to Host
Power supply
Mic pre-amps
Input channels
Mix buses
Headphone outs
Onboard DSP
Dante
Bit Depth / Sample Rate
USB MAIN
USB SUB
Multi-Stream Audio (Loopback)
Bluetooth Audio
microSD/USB storage
HDMI
Net Weight

MGX16/MGX16V
Color variantsYes (Black / White)
USB to Host2 USB Type-C (MAIN / SUB)
Power supplyBarrel type, DC power IN AC Power Adapter (PA-300)
Mic pre-amps8
Input channels8 mono + 4 stereo + 1 Sound Pad + 2 FX
Mix buses8 MIX + 2 FX + 1 CUE + 1 STEREO
Headphone outs4
Onboard DSPYes
DanteNo
Bit Depth / Sample Rate32-bit / 96 kHz
USB MAIN22-track recording / playback
USB SUB2-track recording / playback
Multi-Stream Audio (Loopback)3
Bluetooth AudioBluetooth audio input (Bluetooth 5.0, A2DP)
microSD/USB storagemicroSD: Up to 16-track recording / 2-track playback
HDMIV model only: 1 In / 1 Thru (A/V Capture & Pass-Through)
Net WeightMGX16: 4.7 kg (10.4 lb), MGX16V: 4.9 kg (10.8 lb)

MGX12/MGX12V
Color variantsYes (Black / White)
USB to Host2 USB Type-C (MAIN / SUB)
Power supplyBarrel type, DC power IN AC Power Adapter (PA-300)
Mic pre-amps4
Input channels4 mono + 4 stereo + 1 Sound Pad + 2 FX
Mix buses8 MIX + 2 FX + 1 CUE + 1 STEREO
Headphone outs4
Onboard DSPYes
DanteNo
Bit Depth / Sample Rate32-bit / 96 kHz
USB MAIN18-track recording / playback
USB SUB2-track recording / playback
Multi-Stream Audio (Loopback)3
Bluetooth AudioBluetooth audio input (Bluetooth 5.0, A2DP)
microSD/USB storagemicroSD: Up to 16-track recording / 2-track playback
HDMIV model only: 1 In / 1 Thru (A/V Capture & Pass-Through)
Net WeightMGX12: 3.9 kg (8.6 lb) MGX12V: 4.1 kg (9.0 lb)

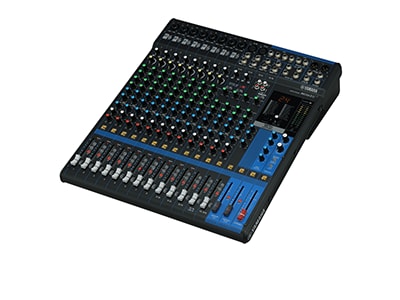

MG16XU
Color variantsNo
USB to HostUSB Type-B
Power supply AC power cord
Mic pre-amps8
Input channels8 mono + 2 stereo/mono + 2 stereo
Mix buses1 Stereo, 4 Group, 4 AUX (incl. FX)
Headphone outs1
Onboard DSPYes
DanteNo
Bit Depth / Sample Rate24-bit / 192 kHz
USB MAIN2-track recording / playback
USB SUBNo
Multi-Stream Audio (Loopback)1
Bluetooth AudioNo
microSD/USB storageNo
HDMINo
Net Weight6.8 kg (15.0 lbs.)

MG12XU
Color variantsNo
USB to HostUSB Type-B
Power supplyAC power cord
Mic pre-amps4
Input channels4 mono + 2 stereo/mono + 2 stereo
Mix buses1 Stereo, 2 Group, 2 AUX (incl. FX)
Headphone outs1
Onboard DSPYes
DanteNo
Bit Depth / Sample Rate24-bit / 192 kHz
USB MAIN2-track recording / playback
USB SUBNo
Multi-Stream Audio (Loopback)1
Bluetooth AudioNo
microSD/USB storageNo
HDMINo
Net Weight4.2 kg (9.3 lbs.)

DM3 Series
Color variantsNo
USB to HostUSB Type-B
Power supplyXLR 4pin, DC power IN AC Power Adapter (PA-L500)
Mic pre-amps16
Input channels16 mono + 1 stereo + 2 FX return
Mix buses6 Mix + 2 FX + 1 Cue + 1 Stereo
Headphone outs1
Onboard DSPYes
DanteYes
Bit Depth / Sample Rate32-bit / 96 kHz
USB MAIN18-track recording / playback
USB SUBNo
Multi-Stream Audio (Loopback)1
Bluetooth AudioNo
microSD/USB storageUSB storage device (Type-A): 2-track recording / playback
HDMINo
Net Weight6.5 kg (14.3 lb)

See More Details

RK-MGX16

Rack mount kit for MGX16 and MGX16V

RK-MGX12

Rack mount kit for MGX12 and MGX12V
