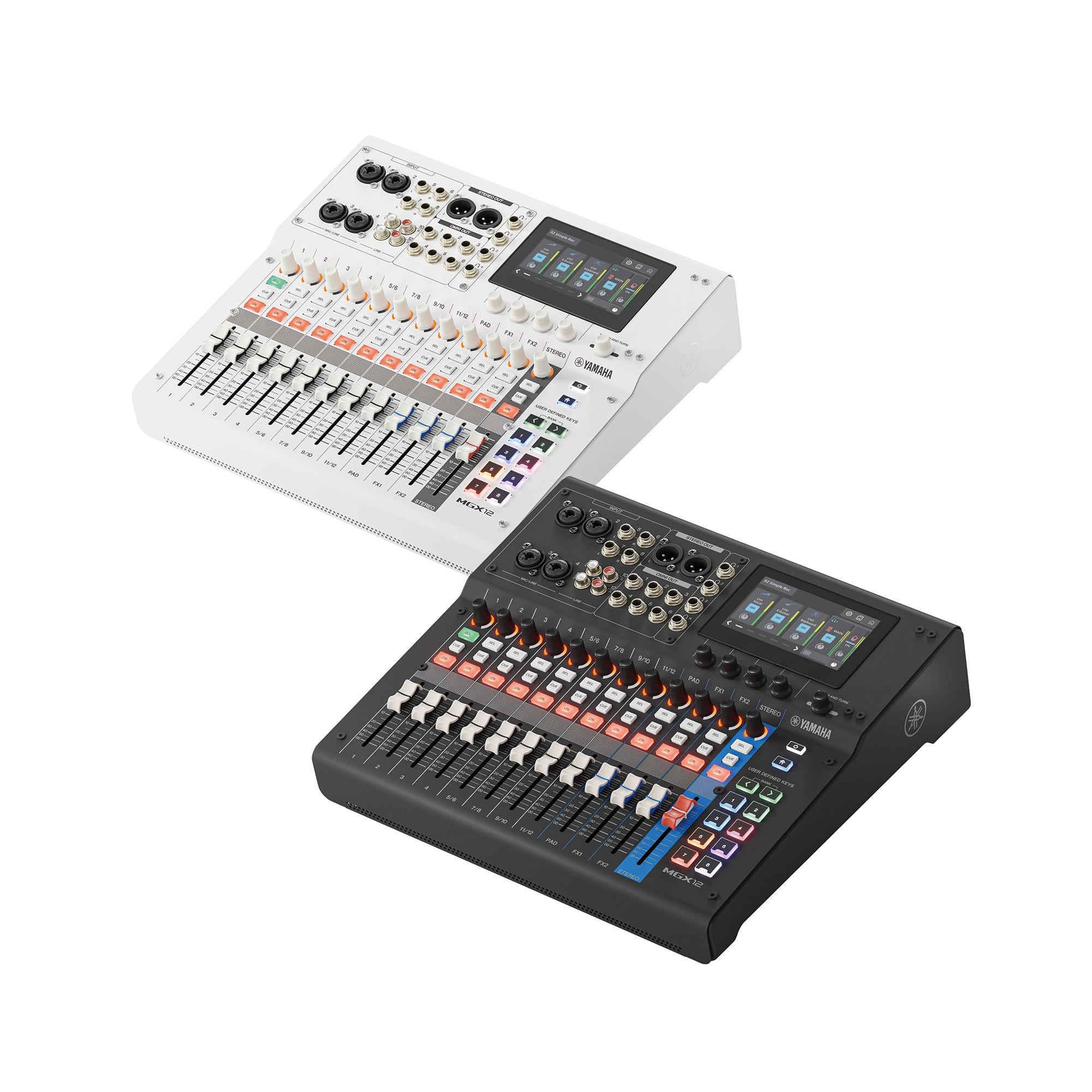

MGX12 18-Channel Digital Mixing Console

All the Essentials

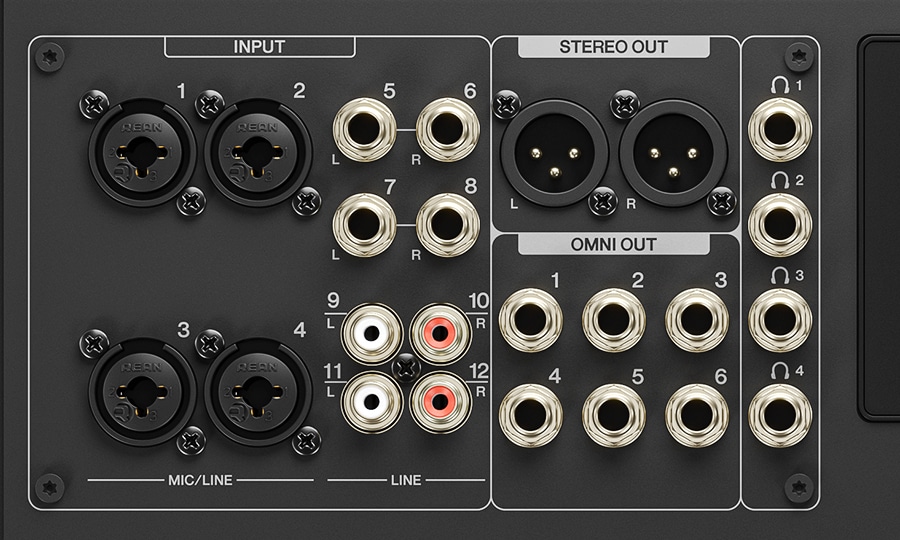

The MGX12 is equipped with 4 premium-quality MGX mic preamps on Mic/Line combo inputs, along with 8 Line inputs, 2 XLR outs, 6 TRS OMNI outs, and 4 headphone ports, enabling smooth collaboration and versatile monitoring.

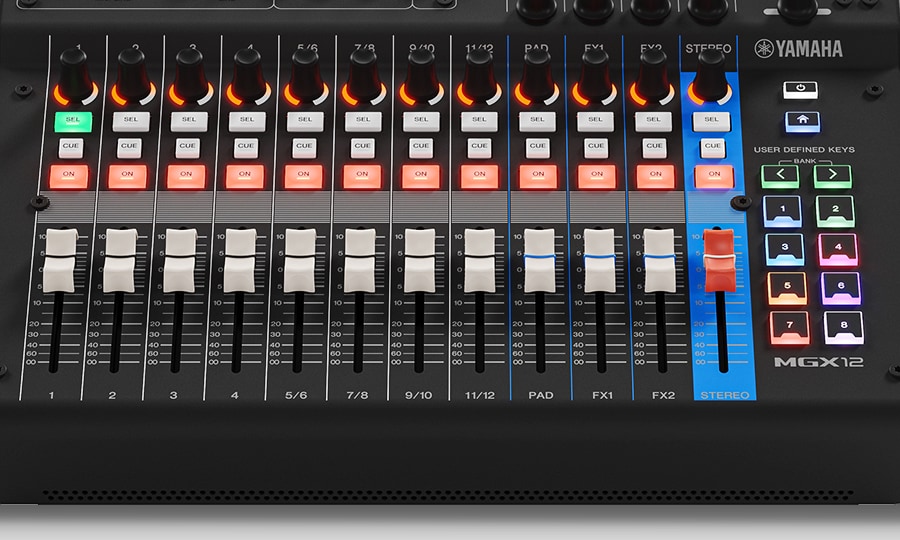

Power. Capability. Versatility.

It also delivers extensive mixing capacity with 8 mono channels, 4 stereo channels, a dedicated Sound Pad, and 2 FX channels, supported by a bus architecture comprising 8 MIX buses, 2 FX buses, 1 CUE bus, and 1 STEREO bus.

Professional, True Sound

By pursuing Yamaha's "True Sound" philosophy and utilizing high-performance AD/DA converters, the MGX mic preamps achieve an impressive 86 dB gain range with ultra-low distortion, and a 125 dB dynamic range at stereo output. Every nuance of your vocal and instrumental performance will be captured and reproduced with stunning accuracy.

This refined professional sound is guaranteed to satisfy not only discerning engineers, but also musicians, performers, and audiences alike.

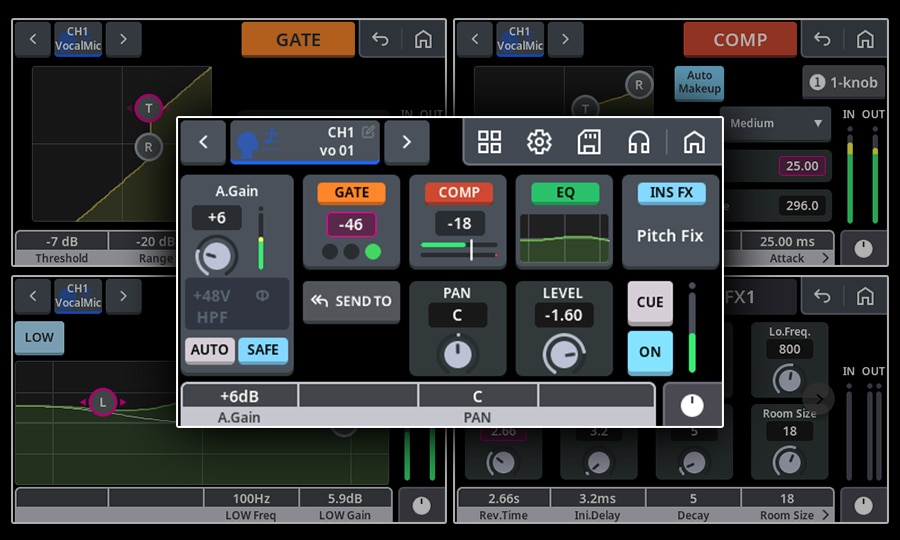

Hone Your Vision

MGX also offers creative tools like Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer, letting you shape your sound exactly as you imagine. And with clear, comfortable monitoring—on stage, in the studio, or streaming—every moment you capture will resonate with beauty.

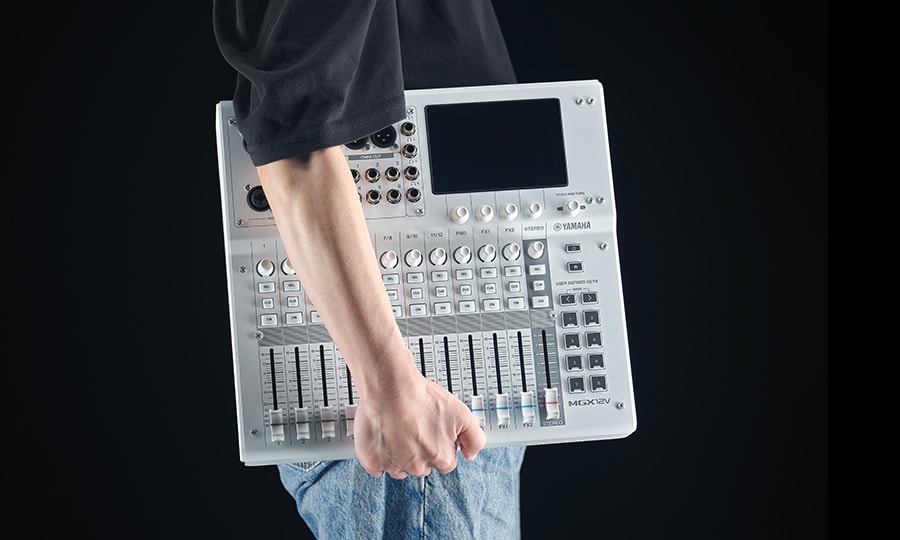

Wherever You Go

Despite offering a wide range of features, the MGX12 achieves an impressively low weight of just 8.6 lbs through meticulous engineering and careful material selection. Without compromising durability, its rugged build is more than ready to handle a variety of environments with confidence.

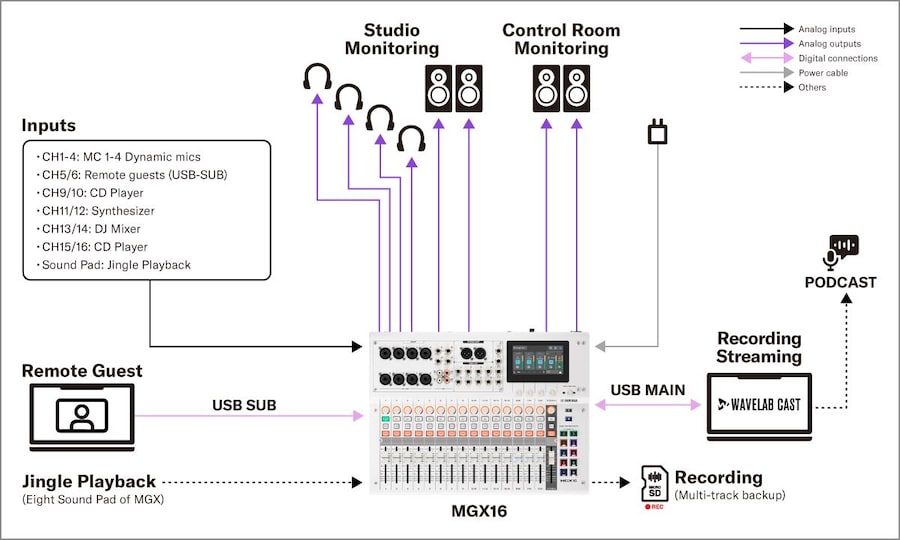

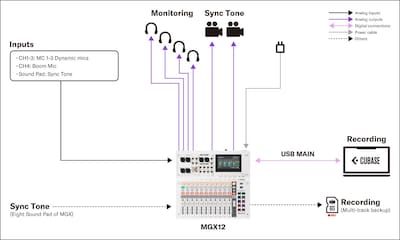

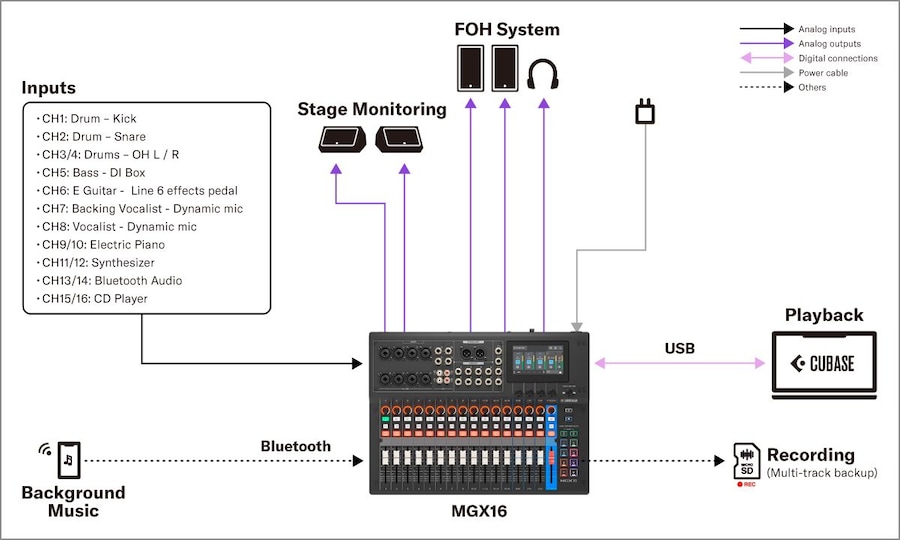

Optimized Integration

By making full use of its flexible routing functions and dual MAIN/SUB USB ports, you can integrate a wide range of audio sources and devices into a setup that works exactly the way you want.

- USB MAIN: 18-track recording / 18-track playback

- USB SUB: 2-track recording / 2-track playback

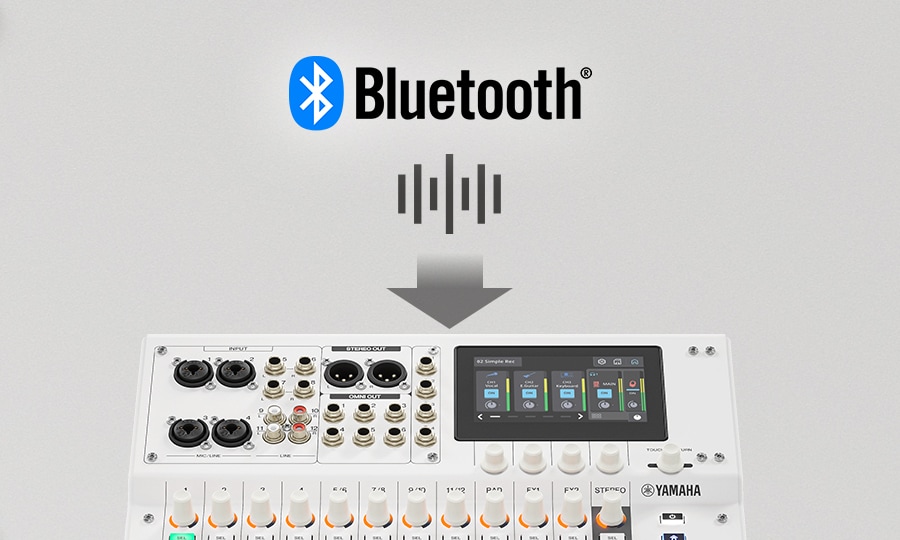

Convenient Bluetooth Audio Input

Bluetooth connectivity allows users to easily integrate wireless audio sources into their live performances, streaming, and studio sessions.

Effortless Style in Sound

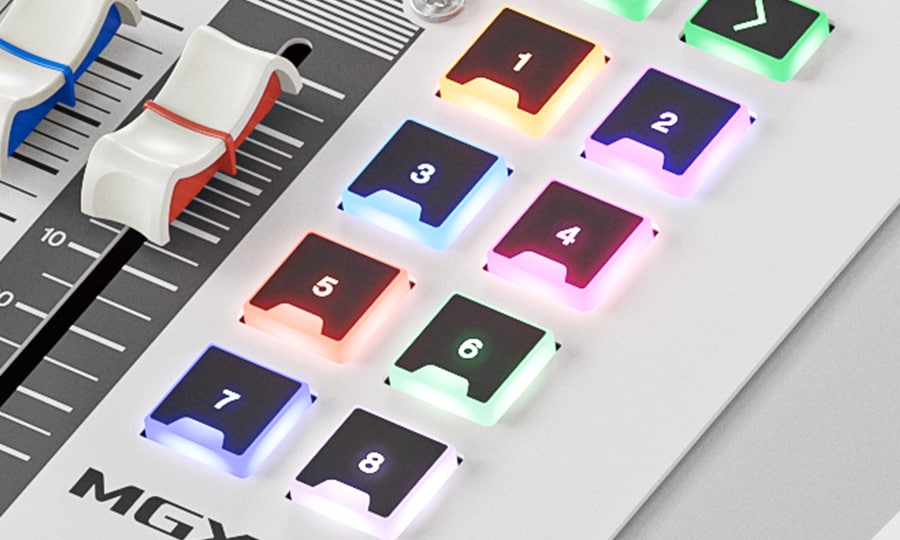

Equipped with eight customizable pads, you can easily add sound effects in real time to enhance your events, podcasts, and streaming. These pads also function as user-defined keys.

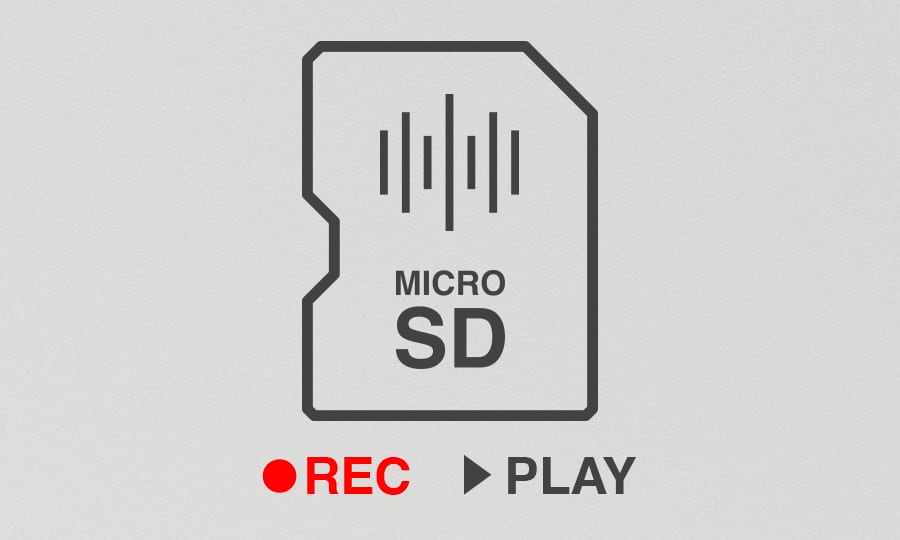

Maximize Your Multi-Track

With the MGX, you can record up to 16 tracks of audio and playback 2 tracks directly from a microSD card. From creating a reliable backup for mobile standalone recording sessions, to playing background music at a venue, you can deliver pro-quality sound anywhere.

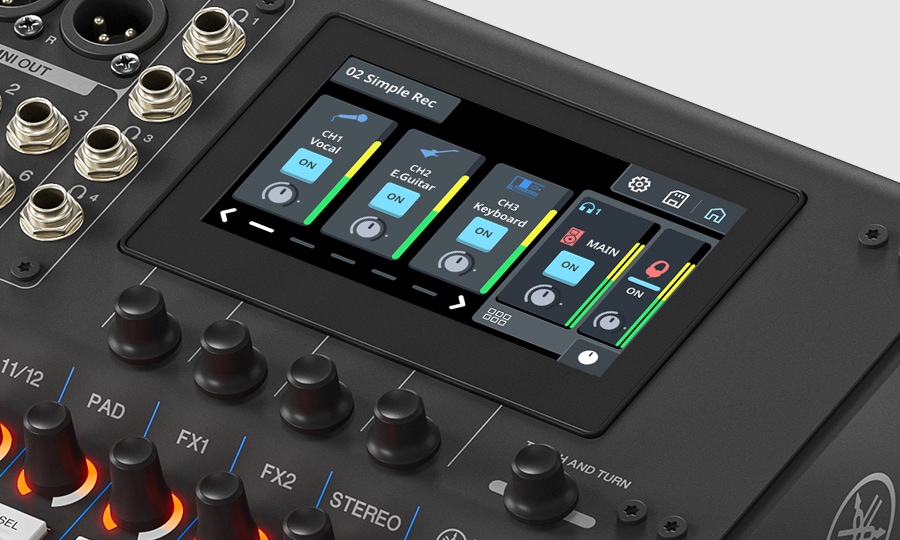

Fast, Intuitive Control - Dialed In

In addition to the core mixer controller section with twelve 60 mm faders and send knobs, a feature-packed GUI on the intuitive touch LCD, four customizable knobs, and the TOUCH AND TURN knob let you enjoy fast, precise, and effortless control—right at your fingertips.

Intelligent Tools for Exceptional Results

Auto Gain optimizes input volumes, Clip Safe prevents sudden distortion, and Total FX gives you tools like the Ducker—automatically prioritizing important sounds—and a Multi-Band Compressor to conveniently enhance your overall audio quality, and even a Delay for lip-sync adjustment.

With these features, the MGX keeps your workflow smooth and your sound consistently professional.

Change Fast, Stay Ready

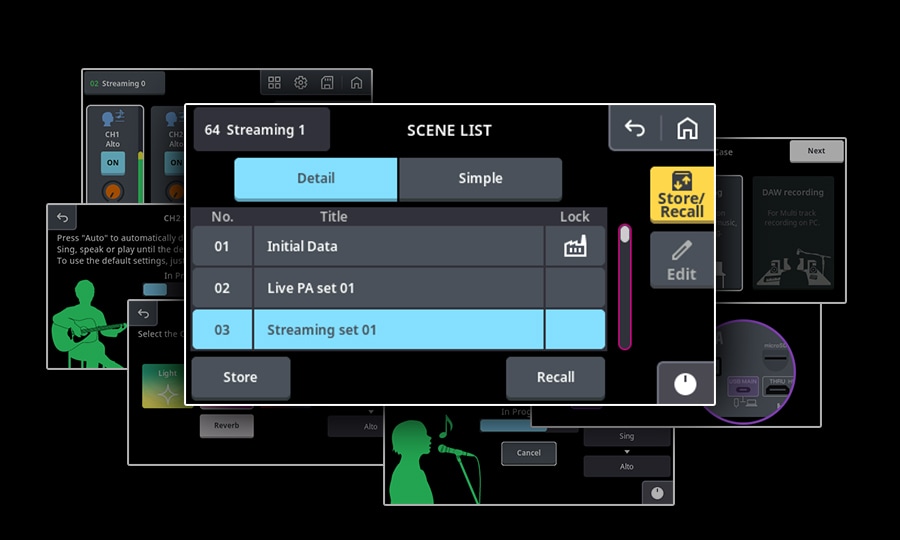

With a Scene Recall function—you can switch between different setups or applications instantly. Pair it with Simple Mode for extra support, so you can stay focused on what matters most: your creativity.

Your Workflow, Your Way

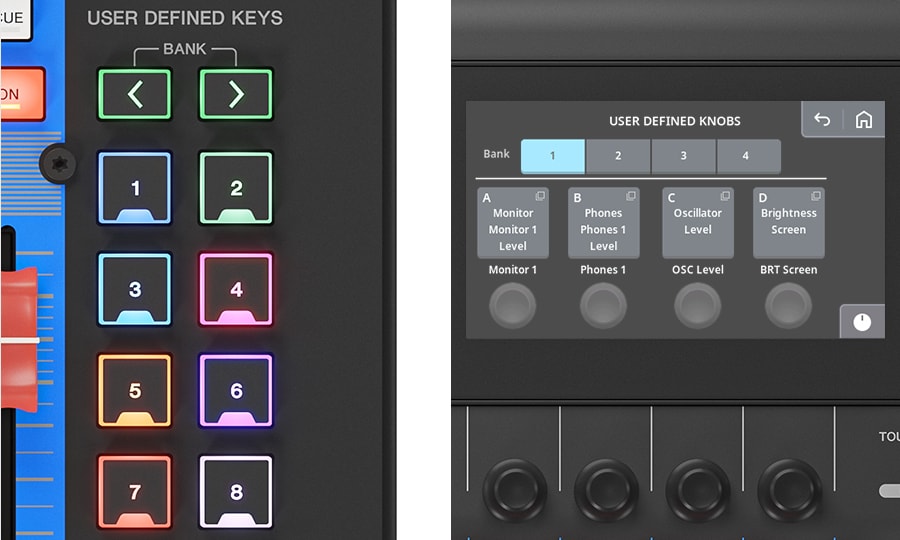

The eight pads and four knobs located at the front right of the MGX also function as customizable user-defined keys. Their assignments can be managed across four banks, allowing you to configure them according to your needs—for example, triggering sound pads, scene recall, or playing back a test tone from the built-in oscillator for venue sound checks.

All You Need to Elevate Your Game

A complete suite of Steinberg music production software, together with the free software mixer MixKey, provides support for everyone from beginners just starting out to experienced engineers and creators looking to branch out into new production styles or content creation.

With Yamaha’s lineup of speakers, microphones, headphones, and more, you can build a system that meets your ever-evolving demands.

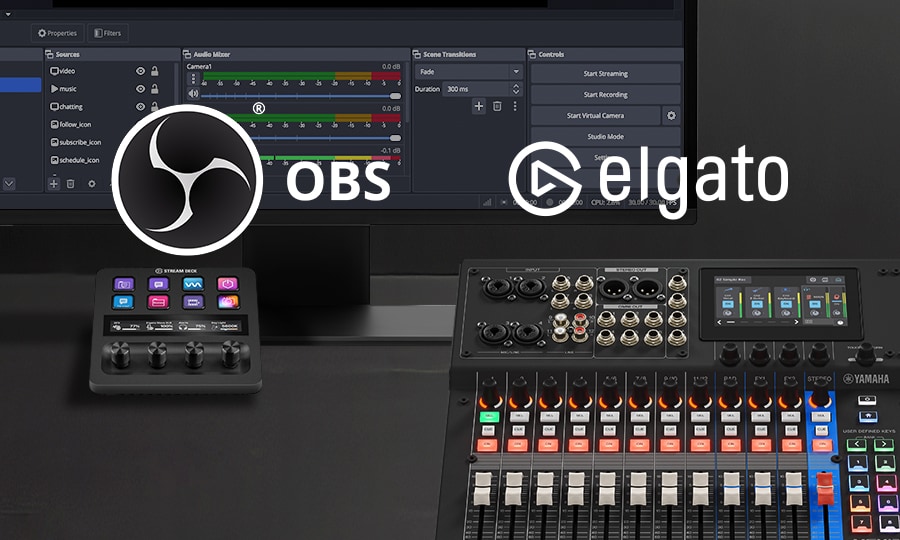

Seamless Controller Integration for a Custom Workflow

Seamless integration with Elgato’s Stream Deck and OBS Studio enhances the smoothness and reliability of your entire control experience. Future support for remote MGX operation via Stream Deck—along with ongoing development and further feature expansion—is planned to continually extend these capabilities. This will allow you to build a workflow that truly fits your creative style and stay fully focused on music production, streaming, video content creation, and performance.
