An acoustic piano with volume control, or a digital piano with strings? Yamaha’s latest development stretches the imagination and opens up a whole new world of possibilities.
TransAcoustic™ is the name we have given to a new breed of piano. At its most basic level, it turns the soundboard into a “loudspeaker.” This means that any sound can be delivered through this naturally resonant piano component.
Because the instrument is a real, fully strung and resonant piano, the natural, sympathetic vibrations of the soundboard, case and, significantly, strings, add a completely new dimension to performance. The sampled sounds come to life with a brilliant realism no other instrument has approached.
How can you use?
Home & Family
Play piano at any volume
There are times when the full sound of an acoustic piano may not be appreciated by your family or neighbors. For these situations, simply activate the TransAcoustic™ function and the hammers will no longer strike the strings. Non-contact sensors under each individual key detect your keystroke depth, velocity and timing and send this information to the tone generator. Just adjust the volume and hear the digital sound of your piano performance coming from the entire instrument. Naturally, there is no need for headphones or external amplification.
Featuring SILENT Piano™ SH
Yamaha’s renowned SILENT Piano™ SH technology allows practice sessions to be conducted with headphones. The TransAcoustic™ piano also features a superb binaural sample from the Yamaha CFX concert grand piano recorded using special techniques to perfectly capture the sound from the player’s natural listening position. These two technologies combine to create the perfect environment to play without disturbing others.
Play-along to music
Enjoy playing along with any of the 50 preset songs that come with the TransAcoustic™, accompanying your playing with songs you have recorded yourself, or even with commercially available songs played back through the sound board. You can be as creative as you want with this feature – you can, for example, play a duet with yourself – or you can just sit back and listen to the playback.
Stage & Church
A broad sonic palette
The TransAcoustic™ piano offers 19 pre-installed sounds, allowing you to select the ideal voice to match your preferred musical genre. With electric pianos, harpsichord, vibraphone, pipe organs, jazz organ, strings, choir, and synth pad, TransAcoustic™ pianos are perfect for performing in jazz bars, hotels, restaurants, churches, and in fact, almost any venue you can imagine. All voices are output through the soundboard, giving these instruments a distinctly natural, resonant sound that makes playing a TransAcoustic™ piano a truly memorable experience.
Combine acoustic and digital sound
Thanks to their unique construction, TransAcoustic™ pianos allow you to layer the natural, resonant sound of the acoustic piano together with voices from the tone generator. Perhaps the most scintillating sounds are created by combining the acoustic and digital properties of the instrument— for example, gentle orchestral strings seemingly played from an acoustic piano—to achieve sonic textures with a natural quality not found on any other instrument.
The sound of Yamaha’s acclaimed CFX concert grand
Played by the winner of the 2010 International Piano Competition, the CFX is Yamaha's flagship concert grand piano. TransAcoustic™ pianos feature a superbly detailed binaural sample of the CFX that lets you to enjoy the rich, resonant sound of the CFX in a more compact instrument.
Real acoustic piano
Most importantly, a TransAcoustic™ model is an acoustic piano with all the benefits you would expect from a Yamaha piano. Nearly all components are produced in-house; therefore we guarantee high-level playability, long lasting durability and a beautiful sound when the hammers strike the strings. The string vibrations are transmitted via the bridges to the solid-wood soundboard which is then set into motion and produces the sound.

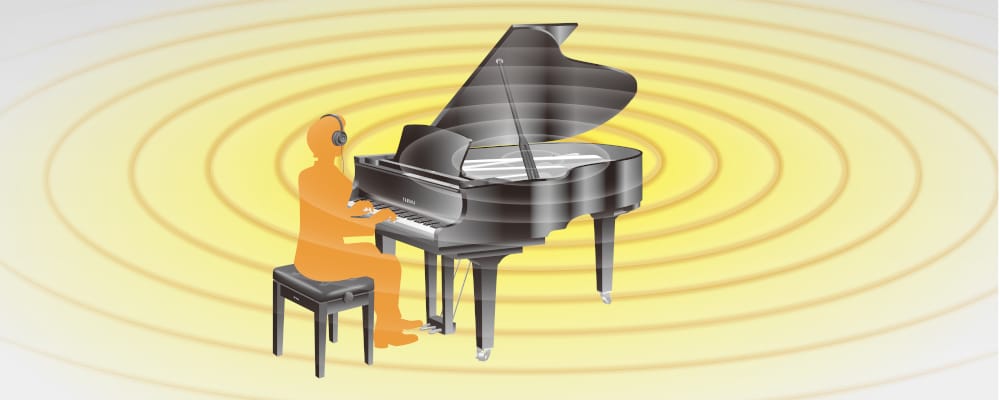

Newly developed TransAcoustic™ technology transmits digital sound directly to the piano soundboard, thus making the piano itself behave as a speaker. On a TransAcoustic™ piano, the sound that you hear is resonating directly from the soundboard.

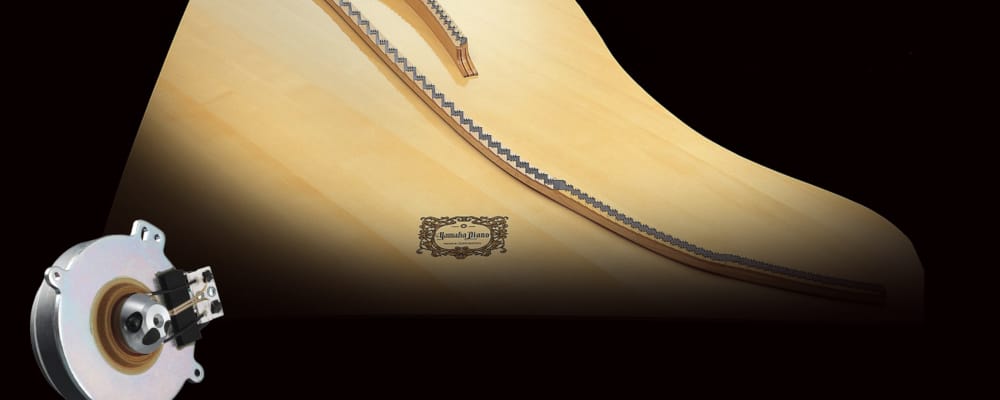

The tone generator sends an optimized audio signal to transducers that are connected by a coil to the soundboard. This sets the coils in motion, causing the soundboard to vibrate and generate sonic vibrations that travel through bridges attached to the soundboard, and are ultimately transmitted to the strings, making them resonate with sound.
Digital and acoustic in perfect harmony
The vibration of the soundboard is also transmitted to the piano strings, causing the strings to resonate naturally, just as they would in an acoustic piano. Without striking the strings, the TransAcoustic™ pianos can generate a distinctively layered sound that resonates beautifully in small performance venues.
